  • Multi-channel resolver interface
  • Programmable for single or multi-turn configuration
  • Supplies position, tachometer, and fault data
  • Industry leading warranty and support
  • 100% compatible with entire line of AMCI brushless resolvers and resolver transducers
  • download-icon.jpg
     Downloads

    1642 user manual

    1642 sample programs

    1642 eds files

    Save

    Save

    Save

    Save

    Save

    Save

    Save

    Save

    Description

    1642 MicroLogix Resolver Interface

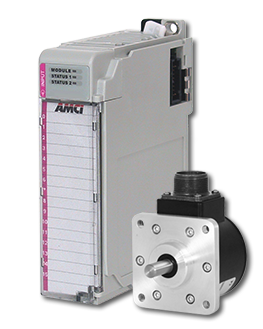

    AMCI delivers the first multi-channel resolver interface to customers seeking a flexible MicroLogix solution. The 1642 Resolver Interface is configurable for either one or two single-turn resolvers; or one dual multi-turn resolver. This MicroLogix PLC module supplies absolute position, tachometer, and fault diagnostic data to the PLC processor.

    For our Stamping Press customers, we've also engineered an additional brake monitoring feature.

    Available Versions

    1642: Two-channel resolver interface plug-in module for the Allen-Bradley Micrologix
    Price | $769/ea

    Note: Pricing is US Domestic only


    Save

    Consult the factory for availability

    Contact Sales

    Licensed By Allen-Bradley

    All AMCI plug-in module products for Allen-Bradley PLCs or PACs are approved for sale by Rockwell Automation and utilize licensed technology to ensure trouble-free performance.

    Advanced Micro Controls Inc. (AMCI) is a global Encompass member of the Rockwell Automation PartnerNetwork™ program. Through collaboration with Rockwell Automation, AMCI helps its customers improve time to market, lower total cost of ownership, better manage assets and minimize manufacturing business risk.

    Encompass Product Partner since 1992

    rockwell-automation-encompass-program-amci-logo.gifAMCI is a founding member of Rockwell Automation's Encompass Product Partner program.


    The Best PLC Integration Available

    AMCI products are uniquely designed to provide the best PLC integration available. Unlike other products that require a separate software package for configuration or operation, AMCI's PLC-based products are programmed using your PLC's software - nothing new to buy or learn!

    Our expertise with the leading PLC manufacturers (e.g. Allen-Bradley Schneider, GE, etc) is unmatched when it comes to high performance Specialty I/O, Position Sensing, and Motion Control technology.

    Program Using Your Existing Software


    AMCI's products program using your PLC's native software - nothing new to learn or buy!

    Specifications

    Product Specifications

    AMCI Module1642 (single-turn)1642 (multi-turn)
    PLC platform1764 MicroLogix
    Number of channels(2)(1)
    Maximum full scale count4,096737,280
    Number of I/O
    D = Direct
    B = Backplane
    RB = Relay Board
    1 in D / 0 out D
    na
    na
    na
    na
    na
    Tachometer resolution1 RPM1 RPM
    DC supply requirements 5Vd220mA @ 5Vdc
    Transducer compatibilityH25 / HT-6 / HT-20 / HT-400 / HT-20-(x) / R11X-J10/7HTT-20 / HTT-400 / HTT-425
    Cable requirementsCTL-XCML-X
    Required hardwarena
    Optional hardwarena

    Accessories

    Resolver Sensors

    Resolver Sensors Learn More

    Cables

    Cables Learn More

    Reference Modules

    Reference Modules Learn More

    AMCI makes buying PLC-based automation easy...our sales group will help you:

    • Select the right product for your application
    • Pay by credit card using your Visa, Mastercard, Discover, or American Express
    • Coordinate alternative payment methods (P.O., wire transfers, etc.)
    • Locate a distributor convenient to your region of the country

    credit cards accepted lineup.png
    Contact AMCI Sales today:

    860-585-1254

    CONTACT SALES

    Ordering Information

    AMCI's sales team takes the hassle out of placing your order. We'll advise on product selection, alternatives, lead times, and present you with point of purchase options. Call (860) 585-1254 or email AMCI sales today!
