1800Q Series Modicon Quantum Resolver Interface Modules
Downloads
User Manuals
1800Q user manual
1800Q manual errata 1
1800Q manual errata 2
1860Q user manual
1860Q manual errata 1
1860Q manual errata 2
Configuration Files
Description

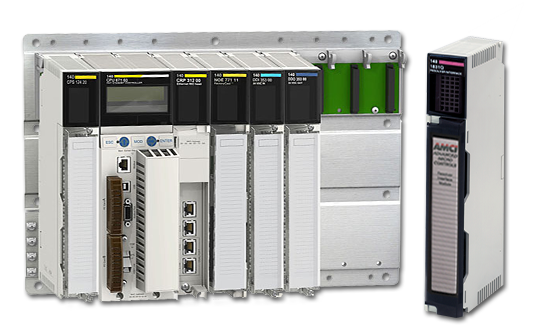

1800Q Series Modicon Quantum Resolver Interface Module
The Series 1800Q resolver interface modules are Quantum series compliant cards that decode resolver signals. The 1800Q modules eliminate the separate resolver decoder box, PLC input card, and associated wiring needed to bring resolver data to the PLC. The position and tachometer data is reported to the backplane using input registers, and the module is programmed from the output registers.
Available Versions
1831Q-1834Q: One-to-four channel resolver interface plug-in modules for Schneider Modicon Quantum
Price | $2,012 - $3,539/ea
1841Q-1844Q: One-to-four channel resolver interface plug-in module for Schneider Modicon Quantum
Price | $2,533 - $4,581/ea
1861Q-1862Q: One-or-two channel resolver interface plug-in module for Schneider Modicon Quantum
Price | $3,114 - $4,321/ea
Note: Pricing is US Domestic only
Consult the factory for availability
Contact SalesAMCI PLC Modules for Modicon Quantum
All AMCI plug-in module products for the Schneider Modicon Quantum provide guaranteed compatibility and utilize licensed I/O interface technology to ensure trouble-free performance.
By combining all electronics into one easily installed plug-in module, these single slot products eliminate the hassles associated with interfacing stand alone controllers and/or interfaces to Programmable Logic Controllers. Customers choose AMCI control solutions with confidence, knowing that we have over 20 years of experience in the design, development, and manufacturing of modules for the Schneider Automation family of PLCs.
CAPP Partner for 20+ Years
AMCI is a member of the Schneider Electric Collaborative Automation Partner Program.
The Best PLC Integration Available
AMCI products are uniquely designed to provide the best PLC integration available. Unlike other products that require a separate software package for configuration or operation, AMCI's PLC-based products are programmed using your PLC's software - nothing new to buy or learn!
Our expertise with the leading PLC manufacturers (e.g. Allen-Bradley Schneider, GE, etc) is unmatched when it comes to high performance Specialty I/O, Position Sensing, and Motion Control technology.
Program Using Your Existing Software
AMCI's products program using your PLC's native software - nothing new to learn or buy!
Specifications
Product Specifications
| AMCI Module | 183XQ | 184XQ | 186XQ |
|---|---|---|---|
| PLC Platform | Modicon Quantum | ||
| Position sensor | resolver | ||
| Max. full scale count | 1024 | 8192 | 4096/turn |
| Number of channels | X = 1 to 4 | x = 1 or 2 | |
| Tachometer resolution | 1 RPM | ||
| DC supply requirements | 475 mA max. @ 5Vdc | ||
| Transducer compatibility | H25 / HT-6 / HT-20 / HT-400 / HT-20-(x) / R11X-J10/7 | HTT-20 / HTT-400 HTT-425 | |
| Cable requirements | CTL-X | CML-X | |
| Required hardware | na | ||
| Optional hardware | na | ||
Product Specifications
AMCI Module183XQ184XQ186XQ
PLC PlatformModicon Quantum
Position sensorresolver
Max. full scale count102481924096/turn
Number of channelsX = 1 to 4x = 1 or 2
Tachometer resolution1 RPM
DC supply requirements475 mA max. @ 5Vdc
Transducer compatibilityH25 / HT-6 /
HT-20 / HT-400 /
HT-20-(x) /
R11X-J10/7HTT-20 / HTT-400
HTT-425
HT-20 / HT-400 /
HT-20-(x) /
R11X-J10/7HTT-20 / HTT-400
HTT-425
Cable requirementsCTL-XCML-X
Required hardwarena
Optional hardwarena
AMCI makes buying PLC-based automation easy...our sales group will help you:
- Select the right product for your application
- Pay by credit card using your Visa, Mastercard, Discover, or American Express
- Coordinate alternative payment methods (P.O., wire transfers, etc.)
- Locate a distributor convenient to your region of the country
Contact AMCI Sales today:
860-585-1254
Ordering Information
AMCI's sales team takes the hassle out of placing your order. We'll advise on product selection, alternatives, lead times, and present you with point of purchase options. Call (860) 585-1254 or email AMCI sales today!
