  • 2-axis motion controller
  • Interpolated motion (circular & linear)
  • Encoder feedback for closed loop positioning
  • Use for Servo or Stepper control
  • Compatible w/ MicroLogix 1100, 1200 & 1400
  • Simplified programming via RSLogix500
  •  download-icon.jpg
     Downloads

    User Manuals

    3102 user manual
    3102i user manual

    Sample programs

    3102 & 3102i sample programs



    Save

    Save

    Save

    Description

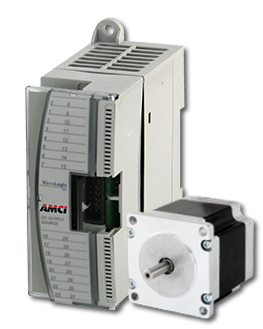

    3102 & 3102i MicroLogix Motion Controllers

    AMCI 3100 series two-axis motion control modules unleash the power of your 1762 MicroLogix I/O. Equipping your MicroLogix 1100, 1200, of 1400 PLC with powerful multi-axis motion control is now possible and easy!

    AMCI's 3100 series motion modules incorporate specialized commands, including linear & circular interpolation, for all of your motion needs. Encoder feedback for move verification is also available. Plus, these powerful motion controllers are easily programmed, configured, and commissioned using Allen-Bradley's popular RSLogix 500 software. Programmed directly from the output registers, these modules offer a wide range of motion commands, including absolute, relative, registration, and blend moves that can be configured to meet the most exacting requirements. Plus, AMCI's 3100 series motion modules can be used with servos only, steppers only, or a mix of servos and steppers...you choose!

    AMCI's 3100 series two-axis motion control modules are available in two versions: 3102 (X-Y motion control) & 3102i (X-Y motion control + interpolation).

    AMCI 3102:
    AMCI's 3102 PLC module is a 2-axis motion controller for Rockwell Automation's 1762 MicroLogix I/O, including the 1100, 1200, and 1400. The 3102 module provides encoder feedback and can control servo drives with step/direction input or stepper drives depending on your requirements. And the 3102 module offers a wide range of motion commands including jog, home, and point-to-point control. Popular applications for this motion controller include assembly lines, conveyor control, in-process gauging, valve control, and much more.

    AMCI 3102i:
    AMCI's 3102i was developed for applications requiring more sophisticated motion control, specifically linear and circular interpolation. This high performance module is functionally equivalent to AMCI's 3102 controller, however, its ability to reach specific target positions and output contoured motion profiles simplifies manufacturing complexities. Popular applications for AMCI's 3102i interpolated motion controller include high speed assembly, water jet cutting, storage and sorting, laser trimming, needle inspection systems, and much more.

    Available Versions

    3102: Two-axis motion controller (stepper or servo) plug-in module for the Allen-Bradley Micrologix 1100, 1200, and 1400 series
    Price | $647/ea

    3102i: Two-axis motion controller (stepper or servo) with interpolation plug-in module for the Allen-Bradley Micrologix 1100, 1200, and 1400 series
    Price | $755/ea

    Note: Pricing is US Domestic only


    Save

    Consult the factory for availability

    Contact Sales

    Licensed By Allen-Bradley

    All AMCI plug-in module products for Allen-Bradley PLCs or PACs are approved for sale by Rockwell Automation and utilize licensed technology to ensure trouble-free performance.

    Advanced Micro Controls Inc. (AMCI) is a global Encompass member of the Rockwell Automation PartnerNetwork™ program. Through collaboration with Rockwell Automation, AMCI helps its customers improve time to market, lower total cost of ownership, better manage assets and minimize manufacturing business risk.

    Encompass Product Partner since 1992

    rockwell-automation-encompass-program-amci-logo.gifAMCI is a founding member of Rockwell Automation's Encompass Product Partner program.


    The Best PLC Integration Available

    AMCI products are uniquely designed to provide the best PLC integration available. Unlike other products that require a separate software package for configuration or operation, AMCI's PLC-based products are programmed using your PLC's software - nothing new to buy or learn!

    Our expertise with the leading PLC manufacturers (e.g. Allen-Bradley Schneider, GE, etc) is unmatched when it comes to high performance Specialty I/O, Position Sensing, and Motion Control technology.

    Program Using Your Existing Software


    AMCI's products program using your PLC's native software - nothing new to learn or buy!

    Specifications

    Product Specifications

    AMCI Module31023102i (interpolation)
    PLC platform1762 MicroLogix
    Motion capabilitiesX - YX - Y and interpolation (circular & linear)
    Number of channels(1)(2)
    Servo drive compatibility-Rockwell Automation Ultra 1500
    -Rockwell Automation Ultra 3000
    -Mitsubishi Electric MR-J3-A
    -Panasonic Minas-A
    -Yaskawa SGDH Sigma II
    -Most other servo drives...
    Stepper drive compatibility-AMCI SD series drives
    -Most other stepper drives
    8,192
    Maximum output freq.1MHz differential, 100KHz open collector
    Position range(+/-) 1,073,741,823
    Absolute move commands-absolute move / relative move
    -jog move / blend move / registration move / encoder follower
    Two Axis Motion
    -absolute move / relative move
    -jog move / blend move / registration move / encoder follower
    Interpolated Moves
    -Absolute or Relative Linear or Circular Moves
    Auxilary inputs: 8 to 24 Vdc sinking-CW limit switch or E-stop input
    -CCW limit switch or E-Stop input
    -Home limit switch
    -Capture input
    -External input
    Encoder feedback(1) per axis: A, B, and Z differential inputs
    DC supply requirements0.110A max @ 5Vdc
    0.085Amax @24Vdc
    Output control signals-5 Vdc differential line driver
    -24Vdc open collector
    -step and direction or CW/CCW selectable
    Required hardware
    MS-40 module connector w/ pins for users making their own cable

    OR

    IM-3R Accessory Kit, includes breakout box and cable w/ connectors

    Accessories

    Stepper Drives

    Stepper Drives Learn More

    Stepper Motors

    Stepper Motors Learn More

    Interface Modules

    Interface Modules Learn More
