3601 CompactLogix Motion Controller Module

3601 CompactLogix Motion Controller Module
  • Value driven single-slot module design
  • Enhanced motion profiles
  • 1 MHz maximum output frequency
  • 100% compatible with entire line of AMCI stepper drives and motors
  • Can also be used as a single-axis stepper or servo controller
  • Industry leading warranty and support
  • download-icon.jpg
     Downloads



    Save

    Save

    Save

    Save

    Save

    Save

    Save

    Save

    Description

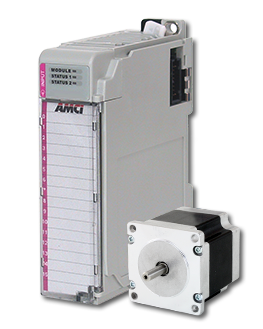

    3601 CompactLogix Motion (Stepper or Servo) Controller

    Advanced Micro Controls, Inc. is proud to offer the 3601 Single Axis Stepper Motor Controller for Allen Bradley's CompactLogix system. This single-axis stepper motor controller features encoder feedback & discrete inputs that can control the velocity and position of a stepper motor.

    AMCI's custom add on profiles make it easy to "add" the 3601 stepper motor controller module to your Allen-Bradley CompactLogix PLC. No more Generic Module types and you can create custom data tags, simplifying data reference.

    Plus, AMCI's 3601 PLC module can also control a servo system that has been configured to use step and direction inputs. The same design that positions the 3601 plc module as a winning choice for stepper applications, also meets the demands of a servo controller for the CompactLogix PLC.

    The 3601 Single Axis Stepper Motor Controller expands our family of PLC Modules and grows an already impressive line of AMCI stepper motion products. For more reliable performance, check out our available line of stepper drives & motors.

    Available Versions

    3601: Single-axis motion controller (stepper or servo) plug-in module for the Allen-Bradley CompactLogix
    Price | $769/ea

    Note: Pricing is US Domestic only


    Save

    Consult the factory for availability

    Contact Sales

    Licensed By Allen-Bradley

    All AMCI plug-in module products for Allen-Bradley PLCs or PACs are approved for sale by Rockwell Automation and utilize licensed technology to ensure trouble-free performance.

    Advanced Micro Controls Inc. (AMCI) is a global Encompass member of the Rockwell Automation PartnerNetwork™ program. Through collaboration with Rockwell Automation, AMCI helps its customers improve time to market, lower total cost of ownership, better manage assets and minimize manufacturing business risk.

    Encompass Product Partner since 1992

    rockwell-automation-encompass-program-amci-logo.gifAMCI is a founding member of Rockwell Automation's Encompass Product Partner program.


    The Best PLC Integration Available

    AMCI products are uniquely designed to provide the best PLC integration available. Unlike other products that require a separate software package for configuration or operation, AMCI's PLC-based products are programmed using your PLC's software - nothing new to buy or learn!

    Our expertise with the leading PLC manufacturers (e.g. Allen-Bradley Schneider, GE, etc) is unmatched when it comes to high performance Specialty I/O, Position Sensing, and Motion Control technology.

    Program Using Your Existing Software


    AMCI's products program using your PLC's native software - nothing new to learn or buy!

    Specifications

    Product Specifications

    AMCI Module3601
    PLC platformCompactLogix (excluding L1 series)
    Number of axis(1) channel
    Maximum output frequency1Mhz
    Position range(+/-) 8,388,607
    Available move commands-absolute move / relative move
    -jog move / blended move
    -registration move / encoder follower
    Auxiliary inputs: 8 to 24Vdc-CW limit switch
    -CCW limit switch
    -Home limit switch
    -External input
    -E-stop input
    -Capture input
    Encoder feedbackA, B, and Z differential inputs
    DC supply requirements0.400A max. @ 5Vdc
    Motor compatibilityAll AMCI SM series stepper motors
    Output signals-5 Vdc differential line driver (3.5 to 4.0 V typical amplitude)
    -step and direction or CW/CCW selectable
    Cable requirementsna
    Hardware requirementsna
    Optional hardwarena

    Accessories

    Stepper Drives

    Stepper Drives Learn More

    Stepper Motors

    Stepper Motors Learn More

    AMCI makes buying PLC-based automation easy...our sales group will help you:

    • Select the right product for your application
    • Pay by credit card using your Visa, Mastercard, Discover, or American Express
    • Coordinate alternative payment methods (P.O., wire transfers, etc.)
    • Locate a distributor convenient to your region of the country

    credit cards accepted lineup.png
    Contact AMCI Sales today:

    860-585-1254

    CONTACT SALES

    Ordering Information

    AMCI's sales team takes the hassle out of placing your order. We'll advise on product selection, alternatives, lead times, and present you with point of purchase options. Call (860) 585-1254 or email AMCI sales today!
