3602 MicroLogix Motion Controller Module

3602 MicroLogix Motion Controller Module
  • 2-axis motion controller
  • Enhanced motion profiles
  • Interpolated motion (circular & linear)
  • 200 kHz maximum output frequency
  • Use for Stepper or Servo control
  • Open Collector Outputs for large voltage operating range; wire for sinking/sourcing inputs
  • download-icon.jpg
     Downloads

    3602 user manual

    3602 sample programs

    3602 add on profiles

    3602 eds files



    Save

    Save

    Save

    Save

    Save

    Save

    Save

    Save

    Description

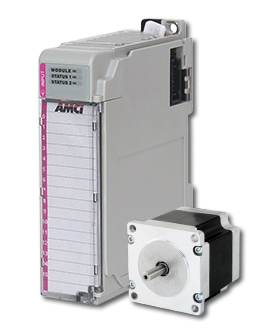

    3602 MicroLogix Motion Controller

    The AMCI 3602 (2) axis servo/stepper module adds powerful motion control to your 1769 MicroLogix I/O PLC. Whether you need sophisticated stepper control, or a cost effective servo solution, AMCI's 3602 motion module makes it easy without giving up performance.

    Plus, AMCI's 3602 plug-in module incorporates Rockwell Automation licensed technology which guarantees compatibility with your MicroLogix PLC. And we've made programming through RSLogix5000 even easier when you download our 3602 Add On Profiles at no charge.

    AMCI's 3602 motion module is much more than a simple PTO (pulse train output) controller. This value packed module equips your MicroLogix with motion commands ranging from basic jog moves to complex circular interpolation, and integrates seamlessly with your Allen-Bradley control system. Powerful, simple, and affordable.

    Available Versions

    3602: Two-axis motion controller plug-in module for the Allen-Bradley MicroLogix
    Price | $996/ea

    Note: Pricing is US Domestic only


    Save

    Consult the factory for availability

    Contact Sales

    Licensed By Allen-Bradley

    All AMCI plug-in module products for Allen-Bradley PLCs or PACs are approved for sale by Rockwell Automation and utilize licensed technology to ensure trouble-free performance.

    Advanced Micro Controls Inc. (AMCI) is a global Encompass member of the Rockwell Automation PartnerNetwork™ program. Through collaboration with Rockwell Automation, AMCI helps its customers improve time to market, lower total cost of ownership, better manage assets and minimize manufacturing business risk.

    Encompass Product Partner since 1992

    rockwell-automation-encompass-program-amci-logo.gifAMCI is a founding member of Rockwell Automation's Encompass Product Partner program.


    The Best PLC Integration Available

    AMCI products are uniquely designed to provide the best PLC integration available. Unlike other products that require a separate software package for configuration or operation, AMCI's PLC-based products are programmed using your PLC's software - nothing new to buy or learn!

    Our expertise with the leading PLC manufacturers (e.g. Allen-Bradley Schneider, GE, etc) is unmatched when it comes to high performance Specialty I/O, Position Sensing, and Motion Control technology.

    Program Using Your Existing Software


    AMCI's products program using your PLC's native software - nothing new to learn or buy!

    Specifications

    Product Specifications

    AMCI Module3602
    PLC platform1764 MicroLogix
    Number of axis(2)
    Maximum output frequency200kHz
    Position range(+/-) 1,073,741,823
    Available move commandsTwo Axis Motion
    -absolute move / relative move/ home move
    -jog move / blend move / registration move

    Interpolated Motion
    -Absolute or Relative Linear or Circular Moves
    Auxiliary inputs: 8 to 24Vdc sinking-CW limit switch or E-stop input (per channel)
    -CCW limit switch or E-Stop input (per channel)
    -Home limit switch (per channel)
    -Capture input (per channel)
    -External input (per channel)
    DC supply requirements0.250A maximum @ 5Vdc
    Output signals-12 to 24Vdc open collector, 30mA maximum
    -step and direction or CW/CCW selectable
    -one general purpose output per channel

    Accessories

    Stepper Drives

    Stepper Drives Learn More

    Stepper Motors

    Stepper Motors Learn More

    AMCI makes buying PLC-based automation easy...our sales group will help you:

    • Select the right product for your application
    • Pay by credit card using your Visa, Mastercard, Discover, or American Express
    • Coordinate alternative payment methods (P.O., wire transfers, etc.)
    • Locate a distributor convenient to your region of the country

    credit cards accepted lineup.png
    Contact AMCI Sales today:

    860-585-1254

    CONTACT SALES

    Ordering Information

    AMCI's sales team takes the hassle out of placing your order. We'll advise on product selection, alternatives, lead times, and present you with point of purchase options. Call (860) 585-1254 or email AMCI sales today!
