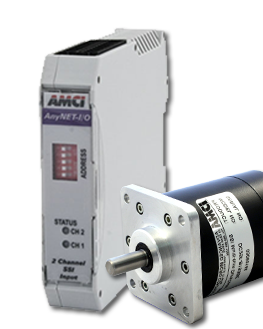

ANE2(X) AnyNET-I/O SSI Interface Networked I/O

ANE2(X) AnyNET-I/O SSI Interface Networked I/O
  • Direct interface to most Gray Code or Binary SSI sensors
  • Expandable interface can support 12 SSI sensors
  • Position scaling that simplifies sensor data
  • Latching inputs provide "snapshot" data capture
  • Programming is easy via your PLC. No additional software required!
  • DIN rail mounting for simple, standard installation
  • download-icon.jpg
     Downloads

    User Manuals

    ANE2(X) user manual

    Sample Programs

    ANE2E sample programs

    ANE2P sample programs

    ANE2P & ANE2 sample programs

    Software

    EtherNet configuration software

    Save

    Save

    Save

    Save

    Save

    Save

    Save

    Save

    Description

    ANE2(X) AnyNET-I/O SSI Interface Networked I/O

    AMCI’s AnyNET-I/O ANE2(X) SSI interface product is the easiest, most flexible way to bring SSI sensor data into any PLC-based control system. AMCI's ANE2(X) connects a wide variety of SSI sensors to your PLC using a standard network connection, and it programs using the host controller's (PLC) native software - nothing new to buy, nothing new to learn!

    The two channel ANE2(X) product is a direct interface to most Gray Code or Binary SSI sensors, including rotary encoders, linear sensors, barcode readers, and laser distance sensors. Additional ANE2(X) features include: position preset, count direction, position scaling, and differential inputs that can be programmed as general purpose inputs, to Apply the Preset Value, or to capture the scaled data value.

    Expansion Capabilities

    AMCI's ANE2(X) expansion modules allow you to easily interface up to (12) SSI sensors using a single network connection, which reduces physical wiring and streamlines network traffic.

    No other product can rival the flexibility, performance, and value of AMCI's ANE2(X) SSI interface.

    Available Versions

    ANE2(X): X = network interface
    ANE2E: (EtherNet IP & Modbus TCP/IP)
    ANE2P: (Profibus)
    Price | $825/ea

    Expansion module
    ANE2: no network interface
    Price | $742/ea

    Note: Pricing is US Domestic only


    Consult the factory for availability

    Contact Sales

    ANE2(X) Features

    • Direct interface to most Gray Code or Binary SSI sensors
    • Expandable interface can support 12 SSI sensors
    • Position scaling that simplifies sensor data
    • Latching inputs provide "snapshot" data capture
    • Programming is easy via your PLC. No additional software required!
    • DIN rail mounting for simple, standard installation


    PLC-Based Specialty I/O Solutions

    AMCI’s AnyNET-I/O family is a distributed I/O system that combines hard to find specialty functions with a network interface, simplifying installation and cutting costs. The product family allows users to “mix & match” functions, including stepper motion
    control and a variety of sensor interfaces, in a single solution.

    AnyNET-I/O is compatible with any networked PLC/PAC and easily programs through the host PLC’s software.  Its innovative product design simplifies installation, optimizes network performance, and ensures system integrity.

    Multple SSI Interface: (1) ANE2(X) + (5) ANE2 shown below
    The ANE2(X) easily expands from a 2-to-12 channel SSI interface by stacking additional interface modules alongside the “gateway”, and it only requires a single network connection for all communication. This innovative product design simplifies installation, optimizes network performance, and ensures system integrity. Please see the diagram below for details.

    Compatible Networks


    AnyNET-I/O is compatible with any networked PLC


    The Best PLC Integration Available

    AMCI products are uniquely designed to provide the best PLC integration available. Unlike other products that require a separate software package for configuration or operation, AMCI's PLC-based products are programmed using your PLC's software - nothing new to buy or learn!

    Our expertise with the leading PLC manufacturers (e.g. Allen-Bradley Schneider, GE, etc) is unmatched when it comes to high performance Specialty I/O, Position Sensing, and Motion Control technology.

    Program Using Your Existing Software


    AMCI's products program using your PLC's native software - nothing new to learn or buy!

    Specifications

    Product Specifications

    AMCI ModuleANE2(X)
    Network AvailabilityANE2E (EtherNet/IP and Modbus TCP)
    ANE2P (Profibus)
    Number of channels2 channels (additional two channel ANE2 modules can be stacked for a total of 12 channels)
    DC supply requirements85 mA @ 24Vdc
    (does not include sensor requirements)
    Transducer Mfr.
    Compatibility
    AMCI: DC25 SSI | AMCI: ME15 SSI
    ------------------------------------------
    Balluff / MTS / SICK / Stegmann / Allen-Bradley
    Transducer type compatibilityrotary encoders, linear sensors, barcode readers, laser distance measuring sensors
    Cable requirementstransducer dependent
    Programmable features-Clock Frequency
    -Number of Clock Bits
    -Number Of Data Bits
    -Most Significant Bit
    -Data Type (gray code or binary)
    -Apply Preset
    -Input Functionality
    -Velocity Update Time

    Included Connectors

    AMCI Part NumberDescription
    MS-2x11I/O connector
    MS-4MPower connector
    IC-5Interconnecting stack connector

    Video



    AnyNET Specialty I/O: PLC-Based Specialty I/O Solutions

    AMCI’s AnyNET I/O family is a distributed I/O system that combines hard to find specialty functions with a network interface, simplifying installation and cutting costs.

    Duration 01:25

    Accessories

    Rotary Encoders

    Rotary Encoders Learn More

    Cables

    Cables Learn More

    AMCI makes buying PLC-based automation easy...our sales group will help you:

    • Select the right product for your application
    • Pay by credit card using your Visa, Mastercard, Discover, or American Express
    • Coordinate alternative payment methods (P.O., wire transfers, etc.)
    • Locate a distributor convenient to your region of the country

    credit cards accepted lineup.png
    Contact AMCI Sales today:

    860-585-1254

    CONTACT SALES

    Ordering Information

    AMCI's sales team takes the hassle out of placing your order. We'll advise on product selection, alternatives, lead times, and present you with point of purchase options. Call (860) 585-1254 or email AMCI sales today!

    Down Arrow

    Create Your Part Number

    Generate your ANE2(X) AnyNET-I/O SSI Interface Networked I/O part number by using this helpful ordering guide. Starting from left to right, use the following diagram and table to choose the desired options.

    Part Number Guide

    Part Number CharacterANE2(X) AnyNET-I/O SSI Interface Networked I/O
    Optional Network:E = EtherNet IP & Modbus TCP/IP
    P = Profibus
    (leave blank for expansion module)
