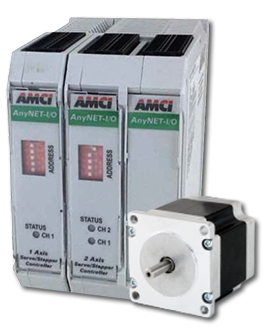

AnyNET-I/O ANF1(X) & ANF2(X) Motion Controllers
The ANF1(X) and ANF2(X) are the first servo/stepper controllers for the AnyNET-I/O product line. The modules offer one or two independent motion control axes that function in an open-loop configuration, or closed loop using the available encoder feedback. Each axis can be used to drive a stepper or a servo with step/direction input capability. The ANF2(X) can synchronize its two axes, giving you the ability to control linear and circular motions in an XY plane.
Moreover, AMCI's ANF1(X) & ANF2(X) expansion modules allow you to easily interface up to (12) motion axes using a single network connection, which reduces physical wiring and streamlines network traffic.
No other product rivals the flexibility, performance, and value of AMCI's ANF1(X) & ANF2(X) Motion Controllers.
Available Versions
1-Axis Stepper Controller
ANF1(X): X = network interface
ANF1E: (EtherNet IP & Modbus TCP/IP)
Price | $410/ea
Expansion module
ANF1: no network interface
Price | $362/ea
---
2-Axis Stepper Controller
ANF2(X): X = network interface
ANF2E: (EtherNet IP & Modbus TCP/IP)
Price | $617/ea
Expansion module
ANF2: no network interface
Price | $570/ea
Note: Pricing is US Domestic only
Consult the factory for availability
Contact SalesANF1(X) & ANF2(X) Features
- 1 or 2-axis motion controllers
- Interpolated motion (circular & linear) available on ANF2(X) (2-axis unit)
- Encoder feedback for closed loop motion control
- Use for Servo or Stepper control
- Compatible w/ today's leading PLCs or PACs
- Simplified programming via the host controller's native software
PLC-Based Specialty I/O Solutions
AMCI’s AnyNET-I/O family is a distributed I/O system that combines hard to find specialty functions with a network interface, simplifying installation and cutting costs. The product family allows users to “mix & match” functions, including stepper motion
control and a variety of sensor interfaces, in a single solution.
AnyNET-I/O is compatible with any networked PLC/PAC and easily programs through the host PLC’s software. Its innovative product design simplifies installation, optimizes network performance, and ensures system integrity.
The ANF1(X) & ANF2(X) satisfies a wide range of applications because of its flexible design. Whether you need a single-axis motion controller or a dozen axes of motion control, AMCI's ANF1(X) & ANF2(X) products keeps it simple without sacrificing performance.
Multiple Motion Controllers: (1) ANF1(X) + (5) ANF1 shown
The ANF1(X) & ANF2(X) easily expands from 1-to-12 axes of motion control by stacking additional controller modules alongside the “gateway”, and it only requires a single network connection for all communication. This innovative product design simplifies installation, optimizes network performance, and ensures system integrity. Please see the diagram below for details.
Compatible Networks
AnyNET-I/O ANF1(X)/ANF2(X) is compatible with any PLC that supports these networks
The Best PLC Integration Available
AMCI products are uniquely designed to provide the best PLC integration available. Unlike other products that require a separate software package for configuration or operation, AMCI's PLC-based products are programmed using your PLC's software - nothing new to buy or learn!
Our expertise with the leading PLC manufacturers (e.g. Allen-Bradley Schneider, GE, etc) is unmatched when it comes to high performance Specialty I/O, Position Sensing, and Motion Control technology.
Program Using Your Existing Software
AMCI's products program using your PLC's native software - nothing new to learn or buy!
Specifications
AnyNET-I/O ANF1(X) & ANF2(X) Motion Controllers
| AMCI Module | ANF1(X) | ANF2(X) |
|---|---|---|
| Network availability | ANF1E (EtherNet/IP & Modbus TCP) | ANF2E (EtherNet/IP & Modbus TCP) |
| Motion capabilities | Single-axis | Two independent single axes or interpolation (circular & linear) |
| Number of channels | (1) channel | (2) channels |
| Servo drive compatibility | -Rockwell Automation Ultra 1500 -Rockwell Automation Ultra 3000 -Mitsubishi Electric MR-J3-A -Panasonic Minas-A -Yaskawa SGDH Sigma II -Most other servo drives... | |
| Stepper drive compatibility | -AMCI SD series drives -Most other stepper drives | |
| Maximum output frequency | 1MHz differential, 100KHz open collector | |
| Position range | (+/-) 1,073,741,823 | |
| Absolute move commands | -absolute move / relative move -jog move / blend move / registration move / encoder follower | Two Axis Motion -absolute move / relative move -jog move / blend move / registration move / encoder follower Interpolated Moves -Absolute or Relative Linear or Circular Moves |
| Auxilary inputs: 8 to 24 Vdc sinking | -CW limit switch or E-stop input -CCW limit switch or E-Stop input -Home limit switch -Capture input -External input | |
| Encoder feedback | (1) per axis: A, B, and Z differential inputs | |
| DC supply requirements | 120ma @24Vdc | |
| Output control signals | -5 Vdc differential line driver -24Vdc open collector -step and direction or CW/CCW selectable | |
AnyNET-I/O ANF1(X) & ANF2(X) Motion Controllers
| AMCI Module | ANF1(X) | ANF2(X) |
|---|---|---|
| Network availability | ANF1E (EtherNet/IP & Modbus TCP) | ANF2E (EtherNet/IP & Modbus TCP) |
| Motion capabilities | Single-axis | Two independent single axes or interpolation (circular & linear) |
| Number of channels | (1) channel | (2) channels |
| Servo drive compatibility | -Rockwell Automation Ultra 1500 -Rockwell Automation Ultra 3000 -Mitsubishi Electric MR-J3-A -Panasonic Minas-A -Yaskawa SGDH Sigma II -Most other servo drives... | |
| Stepper drive compatibility | -AMCI SD series drives -Most other stepper drives | |
| Maximum output frequency | 1MHz differential, 100KHz open collector | |
| Position range | (+/-) 1,073,741,823 | |
| Absolute move commands | -absolute move / relative move -jog move / blend move / registration move / encoder follower | Two Axis Motion -absolute move / relative move -jog move / blend move / registration move / encoder follower Interpolated Moves -Absolute or Relative Linear or Circular Moves |
| Auxilary inputs: 8 to 24 Vdc sinking | -CW limit switch or E-stop input -CCW limit switch or E-Stop input -Home limit switch -Capture input -External input | |
| Encoder feedback | (1) per axis: A, B, and Z differential inputs | |
| DC supply requirements | 120ma @24Vdc | |
| Output control signals | -5 Vdc differential line driver -24Vdc open collector -step and direction or CW/CCW selectable | |
Included Connectors
| AMCI Part Number | Description |
|---|---|
| MS-2x11 | I/O connector |
| MS-4M | Power connector |
| IC-5 | Interconnecting stack connector |
Included Connectors
| AMCI Part Number | Description |
|---|---|
| MS-2x11 | I/O connector |
| MS-4M | Power connector |
| IC-5 | Interconnecting stack connector |
