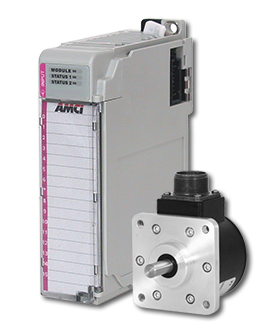

AMCI delivers the first multi-channel resolver interface to customers seeking a flexible CompactLogix solution. The 1642 Resolver Interface is configurable for either one or two single-turn resolvers; or one dual multi-turn resolver. This CompactLogix PLC module supplies absolute position, tachometer, and fault diagnostic data to the PLC processor.
For our Stamping Press customers, we've also engineered an additional brake monitoring feature.
Plus, AMCI's custom add on profiles make it easy to "add" the 1642 resolver interface module to your Allen-Bradley CompactLogix PLC. No more Generic Module types and you can create custom data tags, simplifying data reference.
1642: Two-channel resolver interface plug-in module for the Allen-Bradley Compactlogix
Price | $769/ea
Note: Pricing is US Domestic only
Consult the factory for availability
Contact SalesAll AMCI plug-in module products for Allen-Bradley PLCs or PACs are approved for sale by Rockwell Automation and utilize licensed technology to ensure trouble-free performance.
Advanced Micro Controls Inc. (AMCI) is a global Encompass member of the Rockwell Automation PartnerNetwork™ program. Through collaboration with Rockwell Automation, AMCI helps its customers improve time to market, lower total cost of ownership, better manage assets and minimize manufacturing business risk.
AMCI is a founding member of Rockwell Automation's Encompass Product Partner program.
AMCI products are uniquely designed to provide the best PLC integration available. Unlike other products that require a separate software package for configuration or operation, AMCI's PLC-based products are programmed using your PLC's software - nothing new to buy or learn!
Our expertise with the leading PLC manufacturers (e.g. Allen-Bradley Schneider, GE, etc) is unmatched when it comes to high performance Specialty I/O, Position Sensing, and Motion Control technology.
AMCI's products program using your PLC's native software - nothing new to learn or buy!
AMCI Module | 1642 (single-turn) | 1642 (multi-turn) |
---|---|---|
PLC platform | CompactLogix | |
Number of channels | (2) channels | (1) channel |
Maximum full scale count | 4,096 | 737,280 |
Number of I/O D = Direct B = Backplane RB = Relay Board | 1 in D / 0 out D na na | na na na |
Tachometer resolution | 1 RPM | 1 RPM |
DC supply requirements 5Vd | 220mA @ 5Vdc | |
Transducer compatibility | H25 / HT-6 / HT-20 / HT-400 / HT-20-(x) / R11X-J10/7 | HTT-20 / HTT-400 / HTT-425 |
Cable requirements | CTL-X | CML-X |
Required hardware | na | |
Optional hardware | na |
AMCI Module | 1642 (single-turn) | 1642 (multi-turn) |
---|---|---|
PLC platform | CompactLogix | |
Number of channels | (2) channels | (1) channel |
Maximum full scale count | 4,096 | 737,280 |
Number of I/O D = Direct B = Backplane RB = Relay Board | 1 in D / 0 out D na na | na na na |
Tachometer resolution | 1 RPM | 1 RPM |
DC supply requirements 5Vd | 220mA @ 5Vdc | |
Transducer compatibility | H25 / HT-6 / HT-20 / HT-400 / HT-20-(x) / R11X-J10/7 | HTT-20 / HTT-400 / HTT-425 |
Cable requirements | CTL-X | CML-X |
Required hardware | na | |
Optional hardware | na |
