AMCI developed the 7260 series modules for applications requiring a direct interface to most sensors that output SSI data.
The resolution of the ControlLogix SSI interface modules are only limited by the resolution of the position sensor used. Additional features include: position preset, count direction, position scaling, and latch inputs that are used to capture the scaled position data.
These modules also incorporate fault diagnostics that constantly monitor system integrity and report any errors to the PLC

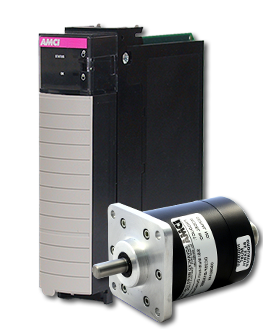

7262: Two-channel SSI interface plug-in module for the Allen-Bradley ControlLogix
Price | $1,670/ea
7264: Four-channel SSI interface plug-in module for the Allen-Bradley ControlLogix
Price | $1,902/ea
Note: Pricing is US Domestic only
Consult the factory for availability
Contact SalesAll AMCI plug-in module products for Allen-Bradley PLCs or PACs are approved for sale by Rockwell Automation and utilize licensed technology to ensure trouble-free performance.
Advanced Micro Controls Inc. (AMCI) is a global Encompass member of the Rockwell Automation PartnerNetwork™ program. Through collaboration with Rockwell Automation, AMCI helps its customers improve time to market, lower total cost of ownership, better manage assets and minimize manufacturing business risk.
AMCI is a founding member of Rockwell Automation's Encompass Product Partner program.
AMCI products are uniquely designed to provide the best PLC integration available. Unlike other products that require a separate software package for configuration or operation, AMCI's PLC-based products are programmed using your PLC's software - nothing new to buy or learn!
Our expertise with the leading PLC manufacturers (e.g. Allen-Bradley Schneider, GE, etc) is unmatched when it comes to high performance Specialty I/O, Position Sensing, and Motion Control technology.
AMCI's products program using your PLC's native software - nothing new to learn or buy!
AMCI Module | 7262 | 7264 |
---|---|---|
PLC platform | 1756 ControlLogix | |
Position sensor | SSI | |
Maximum resolution | transducer dependent | |
Number of channels | (2) channels | (4) channels |
Number of I/O | 2 in direct: used for capturing scaled position data | 4 in direct: used for capturing scaled position data |
Transducer compatibility | AMCI DC25 SSI encoder AMCI ME15 SSI encoder ------------------------------------ Balluff / MTS / SICK / Allen-Bradley / TR Electronic / Dynapar / Baumer / BEI | |
Laser sensor compatibility | Leuze AMS200 optical laser measurement system | |
Optical barcode position system compatibility | Leuze BPS37 optical barcode positioning system | |
Velocity update time | 160ms or 60ms | |
DC supply requirements | 400mA @ 5Vdc | 550mA @5Vdc |
Removable terminal block | Not included with the 7264 module. Order the 1756-TBCH (36 position cage clamp) or the 1756-TBS6H (36 position spring clamp) from your Rockwell Automation supplier. | |
Cable requirements | sensor dependent | |
Required hardware | External +24Vdc power supply to power the input isolation circuitry and generate the 5Vdc output. This supply can also be used to power sensors that operate on 24Vdc and operate the latch inputs. | External power supply for sensor and latch inputs |
Optional hardware | na |
AMCI Module | 7262 | 7264 |
---|---|---|
PLC platform | 1756 ControlLogix | |
Position sensor | SSI | |
Maximum resolution | transducer dependent | |
Number of channels | (2) channels | (4) channels |
Number of I/O | 2 in direct: used for capturing scaled position data | 4 in direct: used for capturing scaled position data |
Transducer compatibility | AMCI DC25 SSI encoder AMCI ME15 SSI encoder ------------------------------------ Balluff / MTS / SICK / Allen-Bradley / TR Electronic / Dynapar / Baumer / BEI | |
Laser sensor compatibility | Leuze AMS200 optical laser measurement system | |
Optical barcode position system compatibility | Leuze BPS37 optical barcode positioning system | |
Velocity update time | 160ms or 60ms | |
DC supply requirements | 400mA @ 5Vdc | 550mA @5Vdc |
Removable terminal block | Not included with the 7264 module. Order the 1756-TBCH (36 position cage clamp) or the 1756-TBS6H (36 position spring clamp) from your Rockwell Automation supplier. | |
Cable requirements | sensor dependent | |
Required hardware | External +24Vdc power supply to power the input isolation circuitry and generate the 5Vdc output. This supply can also be used to power sensors that operate on 24Vdc and operate the latch inputs. | External power supply for sensor and latch inputs |
Optional hardware | na |
