NXAE2 mini-NEXUS Resolver Interface

NXAE2 mini-NEXUS Resolver Interface
  • Replacement for ANA2E AnyNET Resolver Interface
  • 2 channel resolver interface
  • Dual-port networking offers offers DLR for EtherNet/IP & MRP for Profinet
  • Direct interface to most transmit Resolver sensors, including all manufacturers & types
  • Fully programmable: Reference Voltage, Reference Freq., and Transformation ratio
  • 100% compatible with entire line of AMCI single and multi-turn brushless resolver transducers
  • Description

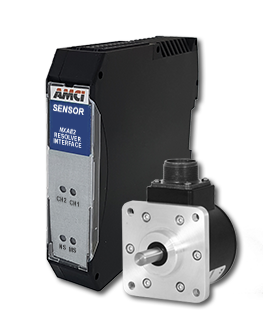

    NXAE2 mini-NEXUS Resolver Interface

    AMCI’s NXAE2 mini-NEXUS Resolver Interface is the easiest, most flexible way to bring resolver sensor data into any PLC-based control system. These plug and play resolver interfaces are the trusted solution for bringing resolver data into your PLC when a plug-in module solution does not exist, such as with Rockwell Automation's 5380 ControlLogix.  AMCI's NXAE2 connects a wide variety of Resolver sensors to your PLC using a standard network connection. Setup programming is from the host controller’s software so there's nothing new to buy and nothing new to learn! Compatible with most sensors on the market.

    The programmable reference voltage, reference frequency, and transformation ratio allows the two channel NXAE2 to directly interface with a wide variety of resolver sensors. It can be connected to two single resolver transducers, including geared and redundant resolvers, or one dual resolver multiturn transducer with either vernier or reduction type gearing.  Additional NXAE2 features include: absolute position, tachometer, and fault diagnostic data for single and multi-turn applications.

    Distributed I/O
    AMCI’s Distributed I/O systems combine hard to find specialty functions with a network interface, simplifying installation and cutting costs. These systems are compatible with any networked PLC/PAC and easily program through the host PLC’s software.  The innovative product design simplifies installation, optimizes network performance, and ensures system integrity.

    Available Versions

    NXAE2
    Price | $1,032/ea

    Note: Pricing is US Domestic only


    Save

    Consult the factory for availability

    Contact Sales

    NXAE2 Features

    • Direct interface to most transmit Resolver sensors, including all mfrs & types
    • Fully programmable: Reference Voltage, Reference Freq., and Transformation ratio
    • 16-bit resolution (up to 65,536 counts)
    • Interface to two single resolver transducers or to one dual resolver transducer
    • Provides absolute position and velocity data for resolvers
    • Position scaling that simplifies sensor data
    • Programming is easy via your PLC. No additional software required!
    • Optional GUI interface for user orientation & test bench evaluation - coming soon
    • DIN rail mounting for simple, standard installation

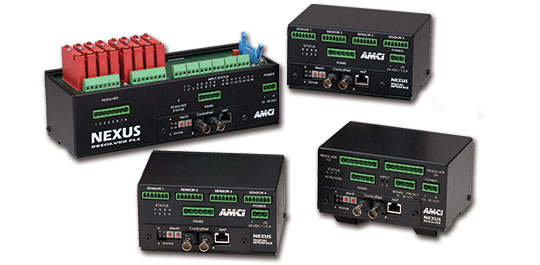

    PLC-Based Specialty I/O Solutions

    Functionally, the AMCI NEXUS controllers and interfaces deliver the same level of PLC integration as their plug-in module counterparts, but with much more flexibility from a systems standpoint. Rather than limit these versatile products to one PLC brand or specific backplane, all units are Din-rail mountable and equipped with a network interface that allows connection to various controllers. AMCI NEXUS specialty I/O integrate with ANY network enabled PLC that supports EtherNet/IP, Modbus-TCP, or Profinet.

    The flexibility of a NEXUS controls solution saves time and money, letting customers choose whatever PLC best meets their needs, or change PLCs without having to re-specify and repurchase plug-in modules. And because the NEXUS integrates via network communication, PLC platforms no longer restrict compatibility and integration.

    Compatible Networks


    NEXUS is compatible with any networked PLC


    The Best PLC Integration Available

    AMCI products are uniquely designed to provide the best PLC integration available. Unlike other products that require a separate software package for configuration or operation, AMCI's PLC-based products are programmed using your PLC's software - nothing new to buy or learn!

    Our expertise with the leading PLC manufacturers (e.g. Allen-Bradley Schneider, GE, etc) is unmatched when it comes to high performance Specialty I/O, Position Sensing, and Motion Control technology.

    Program Using Your Existing Software


    AMCI's products program using your PLC's native software - nothing new to learn or buy!

    Specifications

    Product Specifications

    AMCI ModuleNXAE2 mini-NEXUS
    Network AvailabilityEtherNet IP, Modbus TCP/IP, & Profinet w/ Embedded Switch
    Position sensorResolver transmitters and similar sensors with sine/cosine stator outputs such as variable reluctance transducers.
    Number of channels2 single resolver transducers or 1 dual resolver transducer
    Maximum full scale count8192 counts for single resolver transducers
    Velocity update timeProgrammable to 32 or 125 milliseconds
    DC supply requirements200 mA @ 24Vdc
    375 mA with reference shorted
    surge to 30Vdc without damage to the module
    Transducer compatibilityAMCI Single-Resolvers Transducer:
    H25 / HT-6 / HT-20 / HT-400 / HT-20-(X) / R11X-J10/7

    AMCI Multi-turn Resolvers:
    HTT-20 / HTT-400 / HTT-425

    -AVG/Autotech Controls
    -Ametek/Gemco
    -Allen-Bradley/Reliance
    -Moog/Polyscientific
    -Kearfott
    -Clifton
    plus many more...
    Cable requirementsTransducer dependent
    Programmable features-Reference Voltage
    -Reference Frequency
    -Transformation Ratio
    -Counts Per Turn
    -Count Direction
    -Transducer Fault Latch
    -Apply Preset
    -Transducer Type (Dual Resolvers only)
    -Number of Turns (Dual Resolver only)
    Included connectorsMS-2x11 - I/O connector
    MS-4M - power connector

    Accessories

    Resolver Sensors

    Resolver Sensors Learn More

    Cables

    Cables Learn More

    AMCI makes buying PLC-based automation easy...our sales group will help you:

    • Select the right product for your application
    • Pay by credit card using your Visa, Mastercard, Discover, or American Express
    • Coordinate alternative payment methods (P.O., wire transfers, etc.)
    • Locate a distributor convenient to your region of the country

    credit cards accepted lineup.png
    Contact AMCI Sales today:

    860-585-1254

    CONTACT SALES

    Ordering Information

    AMCI's sales team takes the hassle out of placing your order. We'll advise on product selection, alternatives, lead times, and present you with point of purchase options. Call (860) 585-1254 or email AMCI sales today!
