For less than the cost of a separate controller, drive, and motor, AMCI’s SMD Series integrated stepper motors provide simple motion control at the right price, and are available with a wide variety of sizes, torque options, and features for any application.
Prices start at $514/axis.
The Package

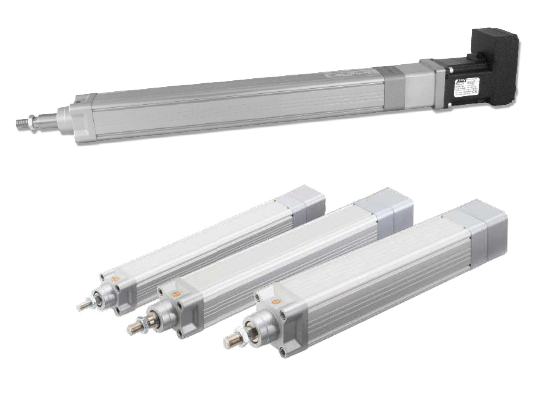

Transform your factory with AMCI’s space-saving, energy-improving, smart electric linear actuators paired with our own integrated stepper or servo motors to provide guaranteed compatibility.
AMCI’s Smart Electric Linear Actuators & Integrated Motors combination can be connected to a PLC via the network. Unlike other products that require a separate software package for configuration or operation, AMCI’s PLC-based products are programmed using your PLC’s software, so there's nothing new to buy or learn!
Motor Integration
AMCI's integrated motors incorporate a stepper or servo motor + drive + controller into a single product that interfaces to your PLC or PAC over the network (EtherNet/IP, Modbus-TCP, and Profinet). These are self-contained motion control products that are easy to install while delivering best in class performance at a competitive price.
Extras:
E2 Technology by AMCI is an innovative new multi-protocol approach to Ethernet distributed I/O. Supported protocols include EtherNet/IP™, Modbus-TCP, and PROFINET.
● Dual-Port Networking
● Multi-Protocol
● Web Server
● Native Software
AMCI's integrated motors have a built-in Ethernet switch. The embedded switch provides a network connection for additional devices without increasing the nodes on your existing ethernet switch. Fault tolerant connections can detect a break in the network and redirect the network traffic maintaining communication and system up-time. See the DLR video tutorial in the resources section of our website to learn more.
AMCI’s SynchroStep technology enables coordinated motion control between the integrated motor and Allen-Bradley motion axes (servo, VFD, etc). The integrated motor can be synchronized and geared to a master Virtual axis within the PLC, filling a gap that currently exists in the industry for small, inexpensive synchronized motion solution offerings. This unique approach to PLC-integration simplifies configuration, programming, and coordinated motion.
AMCI products are uniquely designed to provide the best PLC integration available. Unlike other products that require a separate software package for configuration or operation, AMCI's PLC-based products are programmed using your PLC's software - nothing new to buy or learn!
For over 10 years, AMCI has been engineering integrated motion technologies that fill a gap in the market like no other product. And our expertise with the leading PLC manufacturers (e.g. Allen-Bradley Schneider, GE, etc) is unmatched when it comes to high performance Specialty I/O, Position Sensing, and Motion Control technology.
AMCI's Linear Actuators are compatible with any PLC that supports these networks
AMCI products are uniquely designed to provide the best PLC integration available. Unlike other products that require a separate software package for configuration or operation, AMCI's PLC-based products are programmed using your PLC's software - nothing new to buy or learn!
Our expertise with the leading PLC manufacturers (e.g. Allen-Bradley Schneider, GE, etc) is unmatched when it comes to high performance Specialty I/O, Position Sensing, and Motion Control technology.
AMCI's products program using your PLC's native software - nothing new to learn or buy!
| Stroke (mm) | SMD17E2 (mm) | SMD23E2 (mm) | SV160E2 (mm) |
|---|---|---|---|
| 50 | 359.7 | 384.9 | 405.3 |
| 100 | 409.7 | 434.9 | 455.3 |
| 150 | 459.7 | 484.9 | 505.3 |
| 200 | 509.7 | 534.9 | 555.3 |
| 300 | 609.7 | 634.9 | 655.3 |
| 400 | 709.7 | 734.9 | 755.3 |
| L3 Electric Linear Actuator | ||
|---|---|---|
| Input Voltage | 48 Vdc | |
| Course Pitch | 10mm | |
| Fine Pitch | 3mm | |
| Communication Provided by Integrated Motor | ||
|---|---|---|
| Interface | Ethernet | |
| Bit rate | 10-100 Mbps | |
| Protocol | Ethernet/IP, Modbus-TCP, & Profinet | |
