Description

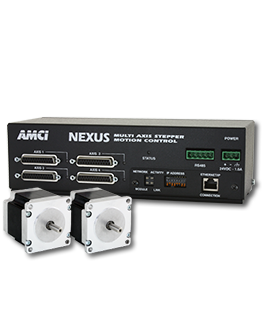

NX1F4_ & NX1F2_ NEXUS Networked I/O Motion Controller
The AMCI Multi-Axis Stepper Motor Controller is a member of our distributed specialty I/O NEXUS product family.
This networked stepper motor controller is available as either a two or four axis controller and can accurately control velocity and position of up to four stepper motors simultaneously. Incremental encoder and discrete inputs can be used to provide additional feedback information for your Stepper Motor application. Its network interface makes it simple to connect this multi-axis stepper controller to a wide variety of PLC's and manufacturing networks.
Designed to operate with AMCI's complete line of stepper drives, the Nexus Multi-Axis Stepper Motor Controller can also operate with drives from many other manufacturers.
Available Versions
NX1F2_: 2-axis stepper controller with network connection
Price | $1,234/ea
NX1F4_: 4-axis stepper controller with network connection
Price | $1,821/ea
Note: Pricing is US Domestic only
Consult the factory for availability
Contact SalesNX1F4_ & NS1F2 Features
- Network ready 2 or 4 axis controller
- Outputs Step & Direction or CW/CCW pulses to a stepper driver
- Encoder feedback for move verification
- Enhanced motion profiles
- Industry leading warranty and support
- 100% compatible with entire line of AMCI stepper drives and motors
PLC-Based Specialty I/O Solutions
Functionally, the AMCI NEXUS controllers and interfaces deliver the same level of PLC integration as their plug-in module counterparts, but with much more flexibility from a systems standpoint. Rather than limit these versatile products to one PLC brand or specific backplane, all units are Din-rail mountable and equipped with a network interface that allows connection to various controllers. AMCI NEXUS specialty I/O integrate with ANY network enabled PLC using Ethernet I/P, Modbus TCP/IP, Profinet, Profibus, ControlNet, or DeviceNet.
The flexibility of a NEXUS controls solution saves time and money, letting customers choose whatever PLC best meets their needs, or change PLCs without having to re-specify and repurchase plug-in modules. And because the NEXUS integrates via network communication, PLC platforms no longer restrict compatibility and integration.
Compatible Networks
NEXUS is compatible with any networked PLC
The Best PLC Integration Available
AMCI products are uniquely designed to provide the best PLC integration available. Unlike other products that require a separate software package for configuration or operation, AMCI's PLC-based products are programmed using your PLC's software - nothing new to buy or learn!
Our expertise with the leading PLC manufacturers (e.g. Allen-Bradley Schneider, GE, etc) is unmatched when it comes to high performance Specialty I/O, Position Sensing, and Motion Control technology.
Program Using Your Existing Software
AMCI's products program using your PLC's native software - nothing new to learn or buy!
Specifications
Product Specifications
| AMCI Module | NX1F2_ | NX1F4_ |
|---|---|---|
| Network Availability | NX1F2A (Profinet) NX1F2C (ControlNet) NX1F2D (DeviceNet) NX1F2E (Ethernet IP) NX1F2P (Profibus) NX1F2T (Modbus TCP/IP) | NX1F4A (Profinet) NX1F4C (ControlNet) NX1F4D (DeviceNet) NX1F4E (Ethernet IP) NX1F4P (Profibus) NX1F4T (Modbus TCP/IP) |
| Number of axis | (2) | (4) |
| Maximum output freq. | 250 kHz | |
| Position range | (±) 8,388,607 | |
| Available move commands | -absolute move -relative move -jog move -blended move -master-slave -encoder follower -registration move | |
| Auxilary inputs: 8 to 24 Vdc sinking | Per channel: -CW limit switch -CCW limit switch -home limit switch -external input -E-stop input | |
| Encoder feedback | (1) per axis: A, B, and Z differential inputs | |
| DC supply requirements | 1 Amp @ 24Vdc | |
| Driver compatibility | All AMCI SD series stepper drives | |
| Output signals | -5 Vdc differential line driver (3.5 - 4.0 V typical amplitude) -selectable, step and direction or CW/CCW pulses | |
| Breakout box wiring (per channel) | A 25 pin breakout box and an interface cable is included with each channel of the Nexus Stepper Controller Caution: The +24Vdc output pin (#6) is directly connected to the +24Vdc pin on the Power Connector. | |
| Required hardware | breakout box and cable per channel (both included) | |
| Optional hardware | na | |
Product Specifications
AMCI ModuleNX1F2_NX1F4_
Network AvailabilityNX1F2A (Profinet)
NX1F2C (ControlNet)
NX1F2D (DeviceNet)
NX1F2E (Ethernet IP)
NX1F2P (Profibus)
NX1F2T (Modbus TCP/IP) NX1F4A (Profinet)
NX1F4C (ControlNet)
NX1F4D (DeviceNet)
NX1F4E (Ethernet IP)
NX1F4P (Profibus)
NX1F4T (Modbus TCP/IP)
NX1F2C (ControlNet)
NX1F2D (DeviceNet)
NX1F2E (Ethernet IP)
NX1F2P (Profibus)
NX1F2T (Modbus TCP/IP) NX1F4A (Profinet)
NX1F4C (ControlNet)
NX1F4D (DeviceNet)
NX1F4E (Ethernet IP)
NX1F4P (Profibus)
NX1F4T (Modbus TCP/IP)
Number of axis(2)(4)
Maximum output freq.250 kHz
Position range(±) 8,388,607
Available move commands-absolute move
-relative move
-jog move
-blended move
-master-slave
-encoder follower
-registration move
-relative move
-jog move
-blended move
-master-slave
-encoder follower
-registration move
Auxilary inputs:
8 to 24 Vdc sinkingPer channel:
-CW limit switch
-CCW limit switch
-home limit switch
-external input
-E-stop input
8 to 24 Vdc sinkingPer channel:
-CW limit switch
-CCW limit switch
-home limit switch
-external input
-E-stop input
Encoder feedback(1) per axis: A, B, and Z differential inputs
DC supply requirements1 Amp @ 24Vdc
Driver compatibilityAll AMCI SD series stepper drives
Output signals-5 Vdc differential line driver
(3.5 - 4.0 V typical amplitude)
-selectable, step and direction or CW/CCW pulses
(3.5 - 4.0 V typical amplitude)
-selectable, step and direction or CW/CCW pulses
Breakout box wiring (per channel)A 25 pin breakout box and an interface cable is included with each channel of the Nexus Stepper Controller
Caution: The +24Vdc output pin (#6) is directly connected to the +24Vdc pin on the Power Connector.
Caution: The +24Vdc output pin (#6) is directly connected to the +24Vdc pin on the Power Connector.
Required hardwarebreakout box and cable per channel (both included)
Optional hardwarena
