1700 Series PLC-5 Resolver Interface Module
Description
1700 Series Resolver Interface
AMCI has engineered a simple, efficient interface that provides a direct resolver connection to the 1771 I/O system. This resolver interface reduces costs through easier setup and installation. Designed to interface to AMCI's extensive line of industrial resolvers, an off-the shelf solution is available for all of your absolute position sensing applications.
Both Dual and Single Slot modules are available for the 1771 I/O system.

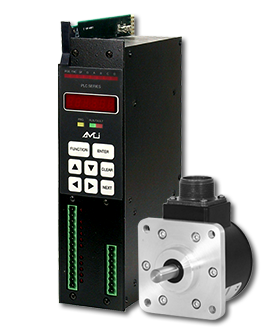

The Dual Slot Modules are fully programmable from the 1771 processor or from its on-board keypad, and offer position resolutions of up to 8,192 counts per turn for single turn applications, and up to 4096 counts/turn over 180 turns for multi-turn applications. Additional features include programmable count direction and various preset and offset parameters.
The Single Slot Modules offer most of the features of the Dual Slot modules without the on-board keypad. These modules allow you to bring resolver data into your 1771 I/O system when rack space is at a premium.
With tens of thousands of modules in use today, product reliability and loyalty are unparalleled.
Available Versions
1730 Series: One to four-channel resolver interface plug-in modules for the Allen-Bradley PLC-5
Price | $2,121 to $3,719/ea
1730H Series: One or two-channel resolver interface plug-in modules for the Allen-Bradley PLC-5
Price | $2,063 to $2,752/ea
1740 Series: One to four-channel resolver interface plug-in modules for the Allen-Bradley PLC-5
Price | $2,655 to $4,820/ea
1760 Series: One or two-channel resolver interface plug-in modules for the Allen-Bradley PLC-5
Price | $3,273 to $4,598/ea
1761H: Single-channel resolver interface plug-in module for the Allen-Bradley PLC-5
Price | $3,165/ea
Note: Pricing is US Domestic only
Consult the factory for exact pricing and availability
Contact SalesLicensed By Allen-Bradley
All AMCI plug-in module products for Allen-Bradley PLCs or PACs are approved for sale by Rockwell Automation and utilize licensed technology to ensure trouble-free performance.
Advanced Micro Controls Inc. (AMCI) is a global Encompass member of the Rockwell Automation PartnerNetwork™ program. Through collaboration with Rockwell Automation, AMCI helps its customers improve time to market, lower total cost of ownership, better manage assets and minimize manufacturing business risk.
Encompass Product Partner since 1992
AMCI is a founding member of Rockwell Automation's Encompass Product Partner program.
The Best PLC Integration Available
AMCI products are uniquely designed to provide the best PLC integration available. Unlike other products that require a separate software package for configuration or operation, AMCI's PLC-based products are programmed using your PLC's software - nothing new to buy or learn!
Our expertise with the leading PLC manufacturers (e.g. Allen-Bradley Schneider, GE, etc) is unmatched when it comes to high performance Specialty I/O, Position Sensing, and Motion Control technology.
Program Using Your Existing Software
AMCI's products program using your PLC's native software - nothing new to learn or buy!
Specifications
Product Specifications (Dual Slot)
| AMCI Module | 173X | 174X | 176X |
|---|---|---|---|
| PLC platform | PLC-5 | ||
| Position sensor | resolver | ||
| Number of channels | X = 1 to 4 | X = 1 to 2 | |
| Max. full scale count | 1024 | 8192 | 4096/turn |
| Position update time | 1 & 2 ch =400us 3 & 4 ch = 800us | 400us | |
| Tachometer update time | programmable 32, 60, 120, or 240ms | fixed 32ms | |
| Tachometer resolution | 1 RPM (0-5000 rpm) or 0.1 RPM (0-999.9 rpm) | 1 RPM | |
| DC supply requirements | 900 mA @ 5Vdc | ||
| Transducer compatibility | H25 / HT-6 / HT-20 / HT-400 / HT-20-(x) / R11X-J10/7 | HTT-20 / HTT-400 / HTT-425 | |
| Cable Requirements | CTL-X | CML-X | |
| Required hardware | na | ||
| Optional hardware | IMT interface module : simplify 3 & 4 input wiring | na | |
Product Specifications (Dual Slot)
AMCI Module173X174X176X
PLC platformPLC-5
Position sensorresolver
Number of channelsX = 1 to 4X = 1 to 2
Max. full scale count102481924096/turn
Position update time1 & 2 ch =400us
3 & 4 ch = 800us
400us
3 & 4 ch = 800us
400us
Tachometer update timeprogrammable 32, 60, 120, or 240msfixed 32ms
Tachometer resolution1 RPM (0-5000 rpm) or 0.1 RPM (0-999.9 rpm)1 RPM
DC supply requirements900 mA @ 5Vdc
Transducer compatibilityH25 / HT-6 /
HT-20 / HT-400 /
HT-20-(x) /
R11X-J10/7HTT-20 / HTT-400 / HTT-425
HT-20 / HT-400 /
HT-20-(x) /
R11X-J10/7HTT-20 / HTT-400 / HTT-425
Cable RequirementsCTL-XCML-X
Required hardwarena
Optional hardwareIMT interface module : simplify 3 & 4 input wiring na
Product Specifications (Single Slot)
| AMCI Module | 173XH | 1761H |
|---|---|---|
| PLC Platform | PLC-5 | |
| Position sensor | resolver | |
| Maximum resolution | 1024 | 4096/turn |
| Position update time | 400us | |
| Number of channels | X = 1 or 2 | 1 |
| Transducer compatibility | H25 / HT-6 / HT-20 / HT-400 / HT-20-(x) / R11X-J10/7 | HTT-20 / HTT-400 / HTT-425 |
| Tachometer update time | 32ms or 120ms (selectable) | 32ms |
| DC supply requirements | 415ma @ 5Vdc | 350ma @ 5Vdc |
| Cable requirements | CTL-X | CML-X |
| Required hardware | na | |
| Optional hardware | na | |
Product Specifications (Single Slot)
AMCI Module173XH1761H
PLC PlatformPLC-5
Position sensorresolver
Maximum resolution10244096/turn
Position update time400us
Number of channelsX = 1 or 21
Transducer compatibilityH25 / HT-6 / HT-20 / HT-400 / HT-20-(x) / R11X-J10/7HTT-20 / HTT-400 / HTT-425
Tachometer update time32ms or 120ms (selectable)32ms
DC supply requirements415ma @ 5Vdc350ma @ 5Vdc
Cable requirementsCTL-XCML-X
Required hardwarena
Optional hardwarena
