7700 Series PLC-5 LDT Interface Modules
Description
7700 Series LDT Interface

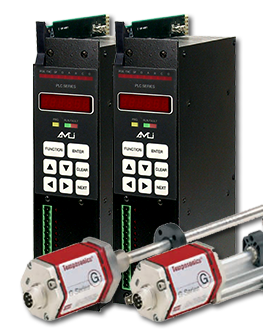

The 7751 and 7752 LDT modules are direct interfaces between magnetostrictive linear displacement transducers (LDT's) and the Allen-Bradley 1771 I/O system. These modules interface with digital Start/Stop or PWM transducers. Fully programmable from the backplane or the sealed keypad and display, these modules provide absolute linear position and velocity data. The 7700 offers programmable position data down to 0.001" resolution. MTS and Balluff offer LDT transducers are available in lengths from 2 to 140 inches in a variety of mounting styles.
Available Versions
7751: Single-channel LDT interface plug-in module for the Allen-Bradley PLC-5
Price | $1,868/ea
7752: Two-channel LDT interface plug-in module for the Allen-Bradley PLC-5
Price | $2,510/ea
Note: Pricing is US Domestic only
Consult the factory for availability
Contact SalesLicensed By Allen-Bradley
All AMCI plug-in module products for Allen-Bradley PLCs or PACs are approved for sale by Rockwell Automation and utilize licensed technology to ensure trouble-free performance.
Advanced Micro Controls Inc. (AMCI) is a global Encompass member of the Rockwell Automation PartnerNetwork™ program. Through collaboration with Rockwell Automation, AMCI helps its customers improve time to market, lower total cost of ownership, better manage assets and minimize manufacturing business risk.
Encompass Product Partner since 1992
AMCI is a founding member of Rockwell Automation's Encompass Product Partner program.
The Best PLC Integration Available
AMCI products are uniquely designed to provide the best PLC integration available. Unlike other products that require a separate software package for configuration or operation, AMCI's PLC-based products are programmed using your PLC's software - nothing new to buy or learn!
Our expertise with the leading PLC manufacturers (e.g. Allen-Bradley Schneider, GE, etc) is unmatched when it comes to high performance Specialty I/O, Position Sensing, and Motion Control technology.
Program Using Your Existing Software
AMCI's products program using your PLC's native software - nothing new to learn or buy!
Specifications
Product Specifications
| AMCI Module | 7751 | 7752 |
|---|---|---|
| PLC platform | PLC-5 | |
| Position sensor | linear displacement transducer with start / stop | |
| Maximum Counts | 0.001" - 0.1mm | |
| Number of channels | (1) channel | (2) channels |
| Transducer Compatibility | Balluf / MTS / Ametek / Turck ----------------------- above brands with start - stop or pwm digital outputs | |
| Maximum transducer length | 650" / 9,999mm | |
| Velocity update time | programmable 32, 60, 120, or 240ms | |
| DC supply requirements | 1.45 A max. @ 5Vdc | |
| Cable requirements | transducer dependent | |
| Required hardware | na | |
| Optional hardware | na | |
Product Specifications
AMCI Module77517752
PLC platformPLC-5
Position sensorlinear displacement transducer with start / stop
Maximum Counts0.001" - 0.1mm
Number of channels(1) channel(2) channels
Transducer CompatibilityBalluf / MTS / Ametek / Turck
-----------------------
above brands with start - stop or
pwm digital outputs
-----------------------
above brands with start - stop or
pwm digital outputs
Maximum transducer length650" / 9,999mm
Velocity update timeprogrammable 32, 60, 120, or 240ms
DC supply requirements1.45 A max. @ 5Vdc
Cable requirementstransducer dependent
Required hardwarena
Optional hardwarena
AMCI makes buying PLC-based automation easy...our sales group will help you:
- Select the right product for your application
- Pay by credit card using your Visa, Mastercard, Discover, or American Express
- Coordinate alternative payment methods (P.O., wire transfers, etc.)
- Locate a distributor convenient to your region of the country
Contact AMCI Sales today:
860-585-1254
Ordering Information
AMCI's sales team takes the hassle out of placing your order. We'll advise on product selection, alternatives, lead times, and present you with point of purchase options. Call (860) 585-1254 or email AMCI sales today!
