1731-03 & 2700 Series PLC-5 Stamping Press Controller Module
Description

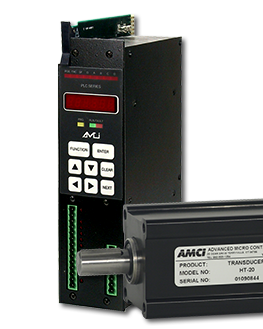

1731-03 & 2700 Series PLC-5 Stamping Press Controller
Advanced Micro Controls, Inc. is the authority on metal stamping press solutions. The three PRESSPro modules we offer in the PLC-5 family of stamping press controllers are engineered specifically for metal forming and fabrication.
The 1731-03 is the choice module for monitoring brake wear and crank angle on stamping presses. If your application calls for top stop control, look into the resolver based PLS 2731-33 module.
The latest PRESSPro module for PLC-5 is the 2762-17. This module controls a reversing motor's direction and speed to stop the motor within a determined range. Typical applications include shut height control and stacker/destacker operations of presses. For more information on all of these PLC-5 PRESSPro modules, please see the table below.
Available Versions
1731-03: Single-channel stamping press automation module for the Allen-Bradley PLC-5
Price | $2,115/ea
2731-33: Single-channel stamping press automation module for the Allen-Bradley PLC-5
Price | $4,064/ea
2762-17: Two-channel stamping press automation module for the Allen-Bradley PLC-5
Price | $3,863/ea
Note: Pricing is US Domestic only
Consult the factory for availability
Contact SalesLicensed By Allen-Bradley
All AMCI plug-in module products for Allen-Bradley PLCs or PACs are approved for sale by Rockwell Automation and utilize licensed technology to ensure trouble-free performance.
Advanced Micro Controls Inc. (AMCI) is a global Encompass member of the Rockwell Automation PartnerNetwork™ program. Through collaboration with Rockwell Automation, AMCI helps its customers improve time to market, lower total cost of ownership, better manage assets and minimize manufacturing business risk.
Encompass Product Partner since 1992
AMCI is a founding member of Rockwell Automation's Encompass Product Partner program.
The Best PLC Integration Available
AMCI products are uniquely designed to provide the best PLC integration available. Unlike other products that require a separate software package for configuration or operation, AMCI's PLC-based products are programmed using your PLC's software - nothing new to buy or learn!
Our expertise with the leading PLC manufacturers (e.g. Allen-Bradley Schneider, GE, etc) is unmatched when it comes to high performance Specialty I/O, Position Sensing, and Motion Control technology.
Program Using Your Existing Software
AMCI's products program using your PLC's native software - nothing new to learn or buy!
Specifications
Product Specifications
| AMCI Module | 1731-03 | 2731-33 | 2762-17 |
|---|---|---|---|
| PLC Platform | PLC-5 | ||
| Positions sensor | resolver | ||
| Max. full scale count | 1024 | 4096/turn | |
| Number of I/O D=Direct B=Backplane RB=Relay Board | D=1 in/ 0 out B=na RB=na | D=1 in/ 8 out B=na RB=na | |
| Number of channels | (1) channel | (2) channels | |
| Output update time | na | 200us | na |
| Tachometer update time | 32, 60, 120, or 240ms | ||
| DC supply requirements | 625 mA @ 5Vdc | 750 mA @ 5Vdc | 800 mA @ 5Vdc |
| Transducer compatibility | H25 / HT-6 / HT-20 / HT-400 / HT-20-(x) / R11X-J10/7 | HTT-20 / HTT-400 / HTT-425 | |
| Cable requirements | CTL-X | CML-X | |
| Required hardware | na | ||
| Optional hardware | remote display | na | |
Product Specifications
AMCI Module1731-032731-332762-17
PLC PlatformPLC-5
Positions sensorresolver
Max. full scale count10244096/turn
Number of I/O
D=Direct
B=Backplane
RB=Relay BoardD=1 in/ 0 out
B=na
RB=naD=1 in/ 8 out
B=na
RB=na
D=Direct
B=Backplane
RB=Relay BoardD=1 in/ 0 out
B=na
RB=naD=1 in/ 8 out
B=na
RB=na
Number of channels(1) channel(2) channels
Output update timena200usna
Tachometer update time32, 60, 120, or 240ms
DC supply requirements625 mA @ 5Vdc750 mA @ 5Vdc800 mA @ 5Vdc
Transducer compatibilityH25 / HT-6 / HT-20 / HT-400 / HT-20-(x) / R11X-J10/7 HTT-20 / HTT-400 /
HTT-425
HTT-425
Cable requirementsCTL-XCML-X
Required hardwarena
Optional hardwareremote displayna
AMCI makes buying PLC-based automation easy...our sales group will help you:
- Select the right product for your application
- Pay by credit card using your Visa, Mastercard, Discover, or American Express
- Coordinate alternative payment methods (P.O., wire transfers, etc.)
- Locate a distributor convenient to your region of the country
Contact AMCI Sales today:
860-585-1254
Ordering Information
AMCI's sales team takes the hassle out of placing your order. We'll advise on product selection, alternatives, lead times, and present you with point of purchase options. Call (860) 585-1254 or email AMCI sales today!
