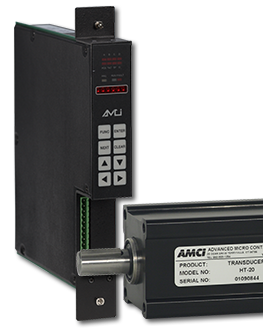

2931 90-70 PLS Module
brushless resolvers and resolver transducers
Description
2900 Series 90-70 Programmable Limit Switch Modules
Turning outputs on and off based on machine shaft position is a basic control principle in use today. However, PLCs cannot control these outputs accurately because of long and inconsistent scan times.
The solution: AMCI's 2900 Programmable Limit Switch Modules. These modules accept one resolver input for shaft position feedback and control outputs based on the resolver position, programmed on/off setpoints, and programmed speed compensation values, without processor intervention.
Available Versions
2931: Single-channel programmable limit switch for GE Automation & Controls 90-70
Price| $3,002/ea
Note: Pricing is US Domestic only
Consult the factory for availability
Contact SalesAMCI PLC Modules for GE Automation & Controls 90-70 Series
All AMCI plug-in module products for GE Automation & Controls 90-70 Series PLCs provide guaranteed compatibility and utilize licensed I/O interface technology to ensure trouble-free performance.
By combining all electronics into one easily installed plug-in module, these single slot products eliminate the hassles associated with interfacing stand alone controllers and /or interfaces to Programmable Logic Controllers. Customers choose AMCI control solutions with confidence, knowing that we have over 20 years of experience in the design, development, and manufacturing of modules for General Electric PLCs.
The Best PLC Integration Available
AMCI products are uniquely designed to provide the best PLC integration available. Unlike other products that require a separate software package for configuration or operation, AMCI's PLC-based products are programmed using your PLC's software - nothing new to buy or learn!
Our expertise with the leading PLC manufacturers (e.g. Allen-Bradley Schneider, GE, etc) is unmatched when it comes to high performance Specialty I/O, Position Sensing, and Motion Control technology.
Program Using Your Existing Software
AMCI's products program using your PLC's native software - nothing new to learn or buy!
Specifications
Product Specifications
| Module | 2931 |
|---|---|
| PLC platform | GE Automation & Controls 90-70 |
| Position sensor | resolver |
| Maximum resolution | 1024 |
| Number of channels | (1) |
| Number of I/O D = Direct B = Backplane RB = Relay Board | 8 out D na na |
| Transducer compatibility | H25 / HT-6 / HT-20 / HT-400 HT-20-(x) / R11X-J10/7 |
| Output update time | 200us |
| Tachometer update time | programmable 32, 60, 120, or 240ms |
| DC supply requirements | 1.0 Amp maximum @ 5Vdc |
| Cable requirements | CTL-X |
| Required hardware | na |
| Optional hardware | na |
Product Specifications
| Module | 2931 |
|---|---|
| PLC platform | GE Automation & Controls 90-70 |
| Position sensor | resolver |
| Maximum resolution | 1024 |
| Number of channels | (1) |
| Number of I/O D = Direct B = Backplane RB = Relay Board | 8 out D na na |
| Transducer compatibility | H25 / HT-6 / HT-20 / HT-400 HT-20-(x) / R11X-J10/7 |
| Output update time | 200us |
| Tachometer update time | programmable 32, 60, 120, or 240ms |
| DC supply requirements | 1.0 Amp maximum @ 5Vdc |
| Cable requirements | CTL-X |
| Required hardware | na |
| Optional hardware | na |
