1300 Series 90-30 Resolver Interface Module
Description

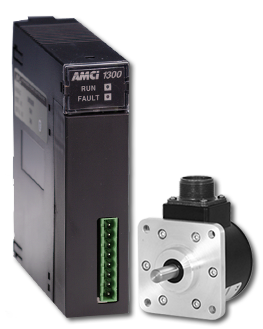

1300 Series 90-30 Resolver Interface Module
AMCI combines stand-alone resolver technology and PLC communication into one, easy to use, plug-in module. Available with one or two resolver inputs, these modules supply absolute position, tachometer, and fault diagnostic data for single and multi-turn applications.
Fully programmable from the 90-30 processor, these resolver interface modules offer position resolutions of up to 8192 counts per turn for single turn applications or 4,096 counts per turn over a maximum of 180 turns for multi-turn applications.
1331: Single-channel resolver interface module for GE Automation & Controls 90-30
Price| $1,261/ea
1332: Two-channel resolver interface module for GE Automation & Controls 90-30
Price| $1,565/ea
1341: Single-channel resolver interface module for GE Automation & Controls 90-30
Price| $1,396/ea
1342: Two-channel resolver interface module for GE Automation & Controls 90-30
Price| $1,635/ea
1361: Single-channel resolver interface module for GE Automation & Controls 90-30
Price| $1,624/ea
Note: Pricing is US Domestic only
Consult the factory for availability
Contact SalesAMCI PLC Modules for GE Automation & Controls 90-30
All AMCI plug-in module products for GE Automation & Controls 90-30 Series PLCs provide guaranteed compatibility and utilize licensed I/O interface technology to ensure trouble-free performance.
By combining all electronics into one easily installed plug-in module, these single slot products eliminate the hassles associated with interfacing stand alone controllers and /or interfaces to Programmable Logic Controllers. Customers choose AMCI control solutions with confidence, knowing that we have over 20 years of experience in the design, development, and manufacturing of modules for General Electric PLCs.
The Best PLC Integration Available
AMCI products are uniquely designed to provide the best PLC integration available. Unlike other products that require a separate software package for configuration or operation, AMCI's PLC-based products are programmed using your PLC's software - nothing new to buy or learn!
Our expertise with the leading PLC manufacturers (e.g. Allen-Bradley Schneider, GE, etc) is unmatched when it comes to high performance Specialty I/O, Position Sensing, and Motion Control technology.
Program Using Your Existing Software
AMCI's products program using your PLC's native software - nothing new to learn or buy!
Specifications
Product Specifications:
| AMCI Module | 133X | 134X | 1361 |
|---|---|---|---|
| PLC Platform | GE Automation & Controls 90-30 | ||
| Number of channels | x = 1 to 2 | 1 | |
| Max. full scale count | 1024 | 8192 | 4096/turn |
| Position update time | 400us | ||
| Tachometer update time | programmable 32ms or 120 ms | fixed 32ms | |
| DC supply requirements | 260 mA @ 5Vdc | ||
| Transducer compatibility | H25 / HT-6 / HT-20 HT-400 / HT-20-(x) R11X-J10/7 | HTT-20 / HTT-400 / HTT-425 | |
| Cable requirements | CTL-X | CML-X | |
| Required hardware | na | ||
| Optional hardware | na | ||
Product Specifications:
| AMCI Module | 133X |
|---|---|
| PLC Platform | GE Automation & Controls 90-30 |
| Number of channels | x = 1 to 2 |
| Max. full scale count | 1024 |
| Position update time | 400us |
| Tachometer update time | programmable 32ms or 120 ms |
| DC supply requirements | 260 mA @ 5Vdc |
| Transducer compatibility | H25 / HT-6 / HT-20 HT-400 / HT-20-(x) R11X-J10/7 |
| Cable requirements | CTL-X |
| Required hardware | na |
| Optional hardware | na |
| AMCI Module | 134X |
|---|---|
| PLC Platform | |
| Number of channels | |
| Max. full scale count | 8192 |
| Position update time | |
| Tachometer update time | |
| DC supply requirements | |
| Transducer compatibility | |
| Cable requirements | |
| Required hardware | |
| Optional hardware | |
| AMCI Module | 1361 |
|---|---|
| PLC Platform | |
| Number of channels | 1 |
| Max. full scale count | 4096/turn |
| Position update time | |
| Tachometer update time | fixed 32ms |
| DC supply requirements | |
| Transducer compatibility | HTT-20 / HTT-400 / HTT-425 |
| Cable requirements | CML-X |
| Required hardware | |
| Optional hardware | |
AMCI makes buying PLC-based automation easy...our sales group will help you:
- Select the right product for your application
- Pay by credit card using your Visa, Mastercard, Discover, or American Express
- Coordinate alternative payment methods (P.O., wire transfers, etc.)
- Locate a distributor convenient to your region of the country
Contact AMCI Sales today:
860-585-1254
Ordering Information
AMCI's sales team takes the hassle out of placing your order. We'll advise on product selection, alternatives, lead times, and present you with point of purchase options. Call (860) 585-1254 or email AMCI sales today!
