SMD17E2 Ethernet Integrated Stepper

  • Rotation Slide

    SMD Series Integrated Motors

    For less than the cost of a separate controller, drive, and motor, AMCI’s SMD Series integrated stepper motors provide simple motion control at the right price, and are available with a wide variety of sizes, torque options, and features for any application.
    Prices start at $514/axis.

  • Stepper Motor + Drive + Indexer integrated for optimum performance
  • Dual-port networking offers offers DLR for EtherNet/IP & MRP for Profinet
  • Multi-protocol - EtherNet/IP, Modbus-TCP, & Profinet networks built-in
  • Programs using your host controller's software - nothing new to learn!
  • Space saving design simplifies installation with reduced wiring
  • IP50 Rated (IP64 or IP67 optional)
  • brochure-icon.png
     Product Brochure

    SMD Family Brochure

    Save

    Save

    Save

    Save

    Save

    Save

    Save

    Save

    Save

    Save

    Save

     other Downloads

    User Manual

    SMD17E2 user manual

    Drawings

    SMD17E2 3D STP drawing

    Sample Programs

    SMD17E2 RSLogix 500 & Studio 5000 sample programs

    SMD17E2 Siemens TIA Portal sample programs

    SMD17E2 SIMATIC S7 sample programs

    Configuration Files

    SMD17E2 eds files

    SMD17E2 gsdml files

    Software

    EtherNet configuration software

    Save

    Save

    Save

    Save

    Save

    Save

    Save

    Save

    Save

    Save

    Save

    Description

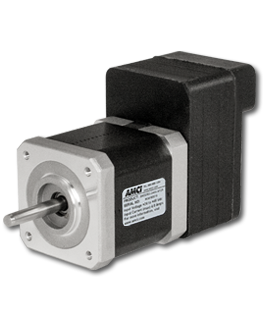

    Size 17 Integrated Stepper Motor + Drive + Controller w/ Network Interface

    The Package

    AMCI's SMD17E2 Networked Series is a size 17 3-in-1 Integrated Stepper Motor, Drive, and Controller package with network interface. It is a self-contained motion control product that is easy to install while delivering best in class performance at a competitive price.

    AMCI's SMD17E2 Network Series incorporates a Stepper Motor + Drive + Controller into a single product that interfaces to your PLC or PAC over the network (EtherNet/IP, Modbus-TCP, & Profinet). We've reduced total system costs and simplified installation because you only have to purchase one product versus a separate controller, drive, and motor. Plus, programming & configuration is streamlined because it uses standard commands through your PLC's software that are communicated over the network. No additional software is required, and you don't need to learn another programming language! AMCI's SMD17E2 Networked Series integrates with your PLC or PAC, saving you time and money.

    Superior Durability

    All units come standard with rugged industrial M12 connectors to provide superior durability. For applications requiring an IP64 rating (protection from dust and splashing water), you can opt for an SMD17E2 Networked Series unit with a shaft seal.

    Move Verification

    AMCI's SMD17E2 Networked Series is available with an optional incremental or absolute encoder for move verification and closed-loop feedback.

    Flexible

    If you're seeking flexibility, AMCI's SMD17E2 Networked Series scores high marks. We've made it easy to add stepper axes wherever you need them on your EtherNet/IP, Modbus-TCP, or Profibus network, just plug in another SMD17E2 Networked Series and configure your motion axis over the network with our simple web server - done.

    Extras:

    E2-logo-50x50px.gifE2 Technology by AMCI is an innovative new multi-protocol approach to Ethernet distributed I/O.  Supported protocols include EtherNet/IP, Modbus-TCP, and PROFINET.

    ● Dual-Port Networking
    ● Multi-Protocol
    Web Server
    Native Software

    fault-tolerant-network-logo-icon.pngThe SMD17E2 has a built-in Ethernet switch. The embedded switch provides a network connection for additional devices without increasing the nodes on your existing ethernet switch. Fault tolerant connections can detect a break in the network and redirect the network traffic maintaining communication and system up-time.  See the DLR video tutorial on the bottom of the page to learn more.

    synchrostep-logo.pngAMCI’s SynchroStep technology enables coordinated motion control between the SMD17E2 and Allen-Bradley motion axes (servo, VFD,  etc). The SMD17E2 can be synchronized and geared to a master Virtual axis within the PLC, filling a gap that currently exists in the industry for small, inexpensive synchronized motion solution offerings. The SMD Series’ unique approach to PLC-integration simplifies configuration, programming, and coordinated motion.

    Save

    Available Networked Versions

    SMD17E2-80:
    Price | $514 - $1,017/ea

    Note: Pricing is US Domestic only


    Save

    Consult the factory for specific pricing and product availability

    Contact Sales

    SMD17E2 Networked Series Features

    • Stepper Motor + Drive + Indexer integrated for optimum performance
    • Built-in network interface
    • Dual-port networking offers DLR for EtherNet/IP & MRP for Profibus
    • Multi-protocol - EtherNet/IP, Modbus-TCP, & Profibus built in
    • Programs using your host controller's software - nothing new to learn!
    • High-Torque, NEMA frame size 17 stepper motor
    • Powerful 2.0 amp, DC-powered microstepping drive
    • Anti-resonance circuitry ensures smooth performance at any speed
    • Space saving design that simplifies installation with reduced wiring
    • M12 connectors for rigorous applications requiring IP50 or IP64 rating


    Stainless Steel IP67 Coating

    AMCI's SMD Series is available with a Stainless Steel Coating that provides superior, long-lasting protection against corrosion and wear in even the toughest industrial environments.  AMCI's coating provides the best protection available from the harmful effects of ultraviolet rays, chemicals, oils, alkalis, food acids, water immersion, abrasion, and high-pressure washdowns.

    Prized for its performance and appearance, AMCI's Stainless Steel IP67 Coating protects the SMD Series in applications including processing, packaging, food, pharmaceutical, equipment manufacture and other industries where strong requirements exist for preventing premature destruction of surfaces caused by exposure to water and other corrosive elements.

    Stainless Steel Coating Available


    The Best PLC Integration Available

    AMCI products are uniquely designed to provide the best PLC integration available. Unlike other products that require a separate software package for configuration or operation, AMCI's PLC-based products are programmed using your PLC's software - nothing new to buy or learn!

    For over 10 years, AMCI has been engineering integrated motion technologies that fill a gap in the market like no other product. And our expertise with the leading PLC manufacturers (e.g. Allen-Bradley Schneider, GE, etc) is unmatched when it comes to high performance Specialty I/O, Position Sensing, and Motion Control technology.

    Compatible Networks


    AMCI's SMD17E2 Networked Series is compatible with any PLC that supports these networks


    The Best PLC Integration Available

    AMCI products are uniquely designed to provide the best PLC integration available. Unlike other products that require a separate software package for configuration or operation, AMCI's PLC-based products are programmed using your PLC's software - nothing new to buy or learn!

    Our expertise with the leading PLC manufacturers (e.g. Allen-Bradley Schneider, GE, etc) is unmatched when it comes to high performance Specialty I/O, Position Sensing, and Motion Control technology.

    Program Using Your Existing Software


    AMCI's products program using your PLC's native software - nothing new to learn or buy!

    Specifications

    General

    SMD17E2 Networked Series (80 oz-in)
    Network Availability:SMD17E2 (EtherNet IP, Modbus TCP/IP, & Profinet w/ Embedded Switch)
    Steps Per Revolution:Programmable between 200 and 32,767 steps
    Input voltage:24 to 48 Vdc
    Motor current:2.0 A/phase
    Aux-logic supply voltage:24 to 48 Vdc
    Operating Temp:-4°F to 122°F (-20°C to 50°C)
    Storage Temp:-40°F to 185°F (-40°C to 85°C)

    INPUTS

    General Purpose InputsSMD17E2 Networked Series (80 oz-in)
    Number/type2 inputs programmable
    Logic range5-24 Vdc
    FunctionHome Limit, Over Travel Limit, Capture Input, Manual Jog Stop, E-Stop, registration, index move
    Input Specifications-Off State Voltage: 0 to 1.5Vdc
    -On State Voltage: 3.3 to 27Vdc
    -Input Requires 10mA of current to operate

    Communication

    SMD17E2 Networked Series (80 oz-in)
    InterfaceEthernet
    Bit rate10-100 Mbps
    ProtocolEthernet/IP, Modbus-TCP, and Profinet
    smd network logos

    Video



    New E2 Technology added to SMD Series Integrated Motors

    AMCI has added their new “E2 Technology” within the company’s lineup of PLC-based SMD Series “all-in-one” stepper motor + drive + controllers. AMCI's new E2 Technology makes moving from one industrial Ethernet protocol to another simple; without the need to physically switch parts. AMCI’s SMD Series with E2 Technology come standard with EtherNet/IP, Modbus-TCP, and Profinet built into each unit.

    Duration 01:03

    Technical Drawings

    Torque Curves: AMCI SMD17E2 Networked Series (80 oz-in)

    Torque Curves: AMCI SMD17E2 Networked Series (80 oz-in)

    Accessories

    Cables

    Cables Learn More

    Connectors

    Connectors Learn More

    SMD Motor Demos Available - free

    Ordering-Section---Free-Demo-with-SMD-request-a-demo.pngAMCI's SMD Series' demo comes with free bench testing software, making it easy to evaluate the SMD Series' torque over speed performance in a compact package.

    Contact AMCI to request your demo today!



    AMCI makes buying PLC-based automation easy...our sales group will help you:

    • Select the right product for your application
    • Pay by credit card using your Visa, Mastercard, Discover, or American Express
    • Coordinate alternative payment methods (P.O., wire transfers, etc.)
    • Locate a distributor convenient to your region of the country

    credit cards accepted lineup.png
    Contact AMCI Sales today:

    860-585-1254

    CONTACT SALES

    Ordering Information

    AMCI's sales team takes the hassle out of placing your order. We'll advise on product selection, alternatives, lead times, and present you with point of purchase options. Call (860) 585-1254 or email AMCI sales today!

    Down Arrow

    Create Your Part Number

    Generate your SMD17E2 Networked Series part number by using this helpful ordering guide. Starting from left to right, use the following diagram and table to choose the desired options.

    Part Number Guide

    Part Number CharacterSize 17 Integrated Stepper Motor Package
    Frame size:17 = NEMA size 17
    Network:E2 = EtherNet/IP, Modbus-TCP, & Profinet w/Embedded Switch
    Holding torque:80 = 80 oz-in
    Encoder:E = Incremental encoder
    A = Absolute multi-turn encoder
    blank = no encoder
    Connectors:M12 = M12 connectors
    IP Rating:S = Shaft seal; IP64
    P = Shaft seal w/ special coating; IP67
    blank = no shaft seal; IP50
