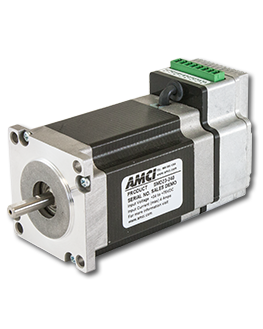

SMD23 Integrated DC Stepper Motor

SMD23 Integrated DC Stepper Motor
  • Stepper Driver + Motor dynamically matched to optimize performance/reliability
  • High-Torque, NEMA frame size 23 stepper motor
  • Powerful 3.4 amp, DC-powered microstepping drive
  • Anti-resonance circuitry ensures smooth performance at any speed
  • Space saving design that simplifies installation with reduced wiring
  • download-icon.jpg
     Downloads

    SMD23 user manual

    SMD23 2D DWG & 3D STP drawings

    Save

    Save

    Save

    Save

    Save

    Save

    Save

    Save

    Description

    Size 23 Integrated Stepper Motor + Drive + Indexer

    AMCI's SMD23 Size 23 Integrated Stepper Motor Drive package combines value driven pricing and simplified installation in a dynamically matched drive-to-motor package that optimizes a wide range of industrial automation applications.

    Powerful 3.4 amp stepper drive technology has been designed into the SMD23's size 23 stepper motor package to achieve a space saving design that delivers outstanding performance.

    Simplified installation begins with a configuration software package that allows you to configure the current level, the idle current amount, and the steps per revolution over a RS232 serial link from your PC.

    While the SMD23 size 23 Integrated Stepper Motor Drive is configured over a serial link, motion is controlled by a separate device, such as a stepper indexer, that outputs step and direction signals. The following diagram illustrates how these signals are used control motion.


    The number of steps received on the SMD23’s step inputs determines how far the motor is to move. The rate at which these steps are received determine how fast the motor will turn. The Direction signal is high for Clockwise motion and low for Counter Clockwise motion.

    Available Versions

    SMD23-130: 130 oz-in with Integrated Drive
    Price | $306/ea

    SMD23-240: 240 oz-in with Integrated Drive
    Price | $327/ea

    Note: Pricing is US Domestic only


    Consult the factory for availability

    Contact Sales

    Specifications

    Specifications:

    Part #Holding TorqueMax. CurrentMotor LengthRotor Inertia
    x10-3 oz-in-sec^2
    Motor Weight
    SMD23-130130 oz-in3.4 A2.12"1.42 oz-in^21.6 lb
    SMD23-240240 oz-in3.4 A2.982.51 oz-in^22.5 lb
    DC supply requirements:
    4Amps @ 24Vdc to 75Vdc
    Input Type: 5V differential, 15mA maximum,
    step, direction, and disable inputs
    (Other input voltages levels possible with the use of current limiting resistors.)
    Steps / Revolution: programmable at 400, 1000, 2000, or 5000
    Motor Current: programmable from 0.3 - 3.4A rms in 0.3A increments
    Optional Equipment: CSMD-5 serial interface cable

    Video

    Technical Drawings

    TORQUE CURVES: AMCI SMD23-130 Integrated Stepper Motor Drive

    TORQUE CURVES: AMCI SMD23-130 Integrated Stepper Motor Drive

    TORQUE CURVES: AMCI SMD23-240 Integrated Sepper Motor Drive

    TORQUE CURVES: AMCI SMD23-240 Integrated Sepper Motor Drive
