7300 Series 90-30 SSI / LDT Interface Module
Description
7300 Series 90-30 SSI/LDT Interface Module
Supplying absolute position and velocity data to your programmable controller, the single slot 7351 Linear Displacement Transducer interface module is a direct connection between Balluff and MTS linear displacement transducers (LDTs) and the GE 90-30 PLC. The 7361 is a direct connection for most transducers that output SSI data. Both modules have module and transducer cable diagnostics that constantly monitor the integrity of the system and report errors to the programmable controller.
The modules have two front panel LEDs for status indication. The 7351 offers programmable position resolution down to 0.001" (one thousand counts per inch), while the 7361's resolution is limited only by the resolution of the sensor. Programmable features include: position preset, count direction, and data scaling.
Available Versions
7351: Single-channel LDT interface module for GE Automation & Controls 90-30
Price| $1,267/ea
7361: Single-channel SSI interface module for GE Automation & Controls 90-30
Price| $1,267/ea
Note: Pricing is US Domestic only
Consult the factory for availability
Contact SalesAMCI PLC Modules for GE Automation & Controls 90-30

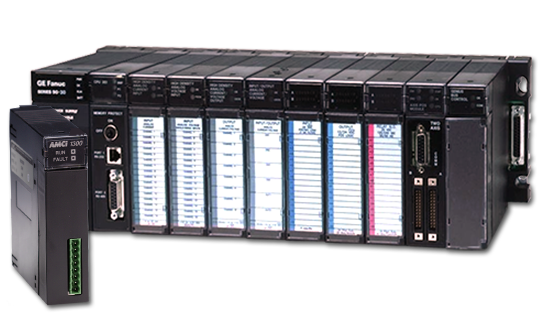

All AMCI plug-in module products for GE Automation & Controls 90-30 Series PLCs provide guaranteed compatibility and utilize licensed I/O interface technology to ensure trouble-free performance.
By combining all electronics into one easily installed plug-in module, these single slot products eliminate the hassles associated with interfacing stand alone controllers and /or interfaces to Programmable Logic Controllers. Customers choose AMCI control solutions with confidence, knowing that we have over 20 years of experience in the design, development, and manufacturing of modules for General Electric PLCs.
The Best PLC Integration Available
AMCI products are uniquely designed to provide the best PLC integration available. Unlike other products that require a separate software package for configuration or operation, AMCI's PLC-based products are programmed using your PLC's software - nothing new to buy or learn!
Our expertise with the leading PLC manufacturers (e.g. Allen-Bradley Schneider, GE, etc) is unmatched when it comes to high performance Specialty I/O, Position Sensing, and Motion Control technology.
Program Using Your Existing Software
AMCI's products program using your PLC's native software - nothing new to learn or buy!
Specifications
AMCI Module
| AMCI Module | 7351 | 7361 |
|---|---|---|
| PLC platform | GE Automation & Controls 90-30 | |
| Position sensor | LDT - start/stop or pwm | SSI |
| Maximum resolution | 0.001"/0.1mm | transducer dependent |
| Number of channels | (1) channel | |
| Transducer compatibility | Balluf / MTS / Ametek / Turck ------------------------------------ above brands with start - stop or pwm digital outputs | AMCI: DC25 SSI AMCI: ME15 SSI ------------------------------------ Balluff / MTS / SICK / Stegmann / Allen-Bradley |
| Velocity update time | 32ms/120ms selectable | programmable 1-1000ms |
| DC supply requirements | 230ma @5Vdc | |
| Cable requirements | sensor dependent | |
| Required hardware | external power supply for sensor | |
| Optional hardware | na | |
AMCI Module
AMCI Module
7351
7361
PLC platform
GE Automation & Controls 90-30
Position sensor
LDT - start/stop or pwm
SSI
Maximum resolution
0.001"/0.1mm
transducer dependent
Number of channels
(1) channel
Transducer compatibility
Balluf / MTS / Ametek / Turck
------------------------------------
above brands with start - stop or pwm digital outputs
------------------------------------
above brands with start - stop or pwm digital outputs
AMCI: DC25 SSI
AMCI: ME15 SSI
------------------------------------
Balluff / MTS / SICK / Stegmann / Allen-Bradley
AMCI: ME15 SSI
------------------------------------
Balluff / MTS / SICK / Stegmann / Allen-Bradley
Velocity update time
32ms/120ms selectable
programmable 1-1000ms
DC supply requirements
230ma @5Vdc
Cable requirements
sensor dependent
Required hardware
external power supply for sensor
Optional hardware
na
AMCI Module
AMCI Module73517361
PLC platformGE Automation & Controls 90-30
Position sensorLDT - start/stop or pwmSSI
Maximum resolution0.001"/0.1mmtransducer dependent
Number of channels(1) channel
Transducer compatibilityBalluf / MTS / Ametek / Turck
------------------------------------
above brands with start - stop or pwm digital outputsAMCI: DC25 SSI
AMCI: ME15 SSI
------------------------------------
Balluff / MTS / SICK / Stegmann / Allen-Bradley
------------------------------------
above brands with start - stop or pwm digital outputsAMCI: DC25 SSI
AMCI: ME15 SSI
------------------------------------
Balluff / MTS / SICK / Stegmann / Allen-Bradley
Velocity update time32ms/120ms selectableprogrammable 1-1000ms
DC supply requirements 230ma @5Vdc
Cable requirementssensor dependent
Required hardwareexternal power supply for sensor
Optional hardwarena
AMCI Module
| AMCI Module | 7351 |
|---|---|
| PLC platform | GE Automation & Controls 90-30 |
| Position sensor | LDT - start/stop or pwm |
| Maximum resolution | 0.001"/0.1mm |
| Number of channels | (1) channel |
| Transducer compatibility | Balluf / MTS / Ametek / Turck ------------------------------------ above brands with start - stop or pwm digital outputs |
| Velocity update time | 32ms/120ms selectable |
| DC supply requirements | 230ma @5Vdc |
| Cable requirements | sensor dependent |
| Required hardware | external power supply for sensor |
| Optional hardware | na |
| AMCI Module | 7361 |
|---|---|
| PLC platform | |
| Position sensor | SSI |
| Maximum resolution | transducer dependent |
| Number of channels | |
| Transducer compatibility | AMCI: DC25 SSI AMCI: ME15 SSI ------------------------------------ Balluff / MTS / SICK / Stegmann / Allen-Bradley |
| Velocity update time | programmable 1-1000ms |
| DC supply requirements | |
| Cable requirements | |
| Required hardware | |
| Optional hardware | |
AMCI makes buying PLC-based automation easy...our sales group will help you:
- Select the right product for your application
- Pay by credit card using your Visa, Mastercard, Discover, or American Express
- Coordinate alternative payment methods (P.O., wire transfers, etc.)
- Locate a distributor convenient to your region of the country
Contact AMCI Sales today:
860-585-1254
Ordering Information
AMCI's sales team takes the hassle out of placing your order. We'll advise on product selection, alternatives, lead times, and present you with point of purchase options. Call (860) 585-1254 or email AMCI sales today!
